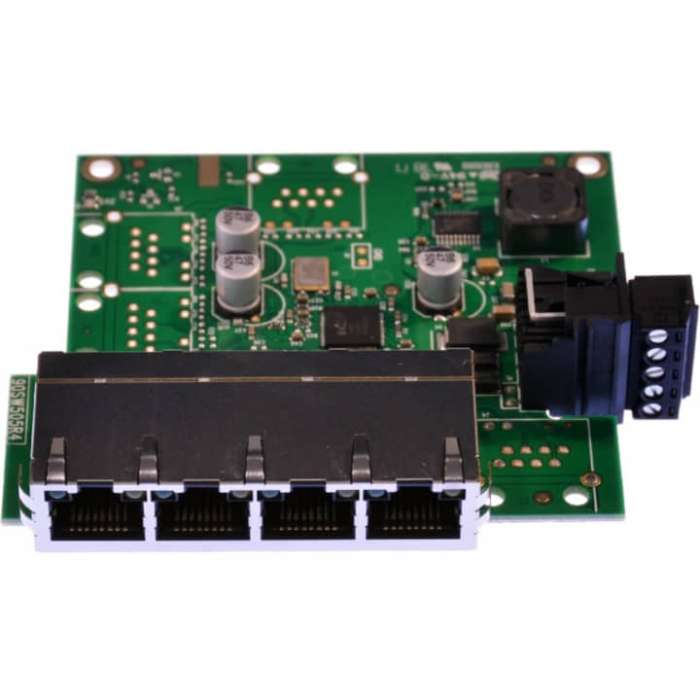

Brainboxes Industrial Embeddable 4 Port Ethernet Switch, 4 Ports, TAA Compliant, 2 Layer Supported, Twisted Pair
SKU
INGM5DB376
by Brainboxes
$80.89 /EACH
Delivered in 2-4 business days
Out of stock
- Lifetime Warranty and Support.
- Industrial operating temp range -40C to +80C / -40F to +176F.
- Redundant dual power inputs: +5V to +30V DC.
- 4 Port Ethernet Switch.
- Ready for embedded applications .
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Switches
Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40C to +80C (-40F to 176F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
| Brand Name | Brainboxes |
|---|---|
| Country of Origin | United Kingdom |
| Depth | 3.3" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Height | 0.8" |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer Part Number | SW-104 |
| Manufacturer | Brainboxes Limited |
| Media Type Supported | Twisted Pair |
| Modular (Interfaces/Ports) | No |
| Network Technology | 10/100Base-T |
| Package Contents | Industrial Embeddable 4 Port Ethernet Switch; Quick Start Guide |
| Port/Expansion Slot Details (Interfaces/Ports) | 4 x Fast Ethernet Network |
| Power Source | Power Supply |
| Power Source | USB |
| Product Model | SW-104 |
| Product Name | Industrial Embeddable 4 Port Ethernet Switch |
| Product Type | Ethernet Switch |
| Stack Port (Interfaces/Ports) | No |
| Stack Port | No |
| TAA Compliant | Yes |
| Total Number of Network Ports (Interfaces/Ports) | 4 |
| Total Number of Network Ports | 4 |
| Uplink Port (Interfaces/Ports) | No |
| Weight (Approximate) | 2.15 oz |
| Width | 3.7" |
| Download PDF File |
| Brand | Brainboxes |
|---|---|
| Weight (lbs) | 0.3000 |
| UPC | 837324004175 |
| MPN | SW-104 |
