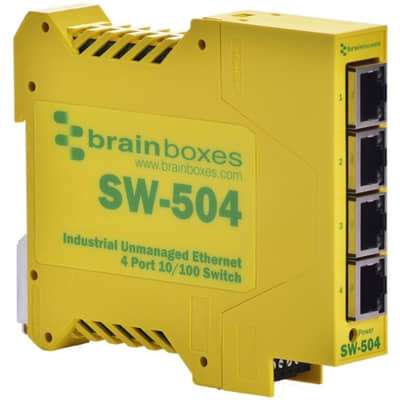

Brainboxes Industrial Ethernet 4 Port Switch DIN Rail Mountable, 4 Ports, 10/100Base-TX, TAA Compliant, 2 Layer Supported
SKU
INGMTE5921
by Brainboxes
$86.56 /EACH
Delivered in 2-4 business days
Out of stock
- 4 Port Ethernet Switch
- Integrated DIN Rail Mount with grounding
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40C to +80C / -40F to +176F
- Slim Footprint Case, only 22.5mm wide
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Switches
Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40C to +80C (-40F to 176F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
| Brand Name | Brainboxes |
|---|---|
| Certifications & Standards | CE; CCC-Mark; C-Tick; Microsoft Certified Gold Partner; METL; AEO (C-TPAT) |
| Country of Origin | United Kingdom |
| Depth | 3.9" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Form Factor | Rail-mountable |
| Height | 0.9" |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer Part Number | SW-504 |
| Manufacturer | Brainboxes Limited |
| Media Type Supported | Twisted Pair |
| Modular (Interfaces/Ports) | No |
| Network Technology | 10/100Base-TX |
| Number of Network (RJ-45) Ports (Interfaces/Ports) | 4 |
| Package Contents | Industrial Ethernet 4 Port Switch DIN Rail Mountable; Quick Start Guide |
| PoE (RJ-45) Port | No |
| Port/Expansion Slot Details (Interfaces/Ports) | 4 x Fast Ethernet Network |
| Power Source | AC Adapter |
| Power Source | USB |
| Product Model | SW-504 |
| Product Name | Industrial Ethernet 4 Port Switch DIN Rail Mountable |
| Product Type | Ethernet Switch |
| Stack Port (Interfaces/Ports) | No |
| Stack Port | No |
| TAA Compliant | Yes |
| Total Number of Network Ports (Interfaces/Ports) | 4 |
| Total Number of Network Ports | 4 |
| Uplink Port (Interfaces/Ports) | No |
| Weight (Approximate) | 4.41 oz |
| Width | 4.6" |
| Download PDF File |
| Brand | Brainboxes |
|---|---|
| Weight (lbs) | 0.4500 |
| UPC | 837324009873 |
| MPN | SW-504 |
