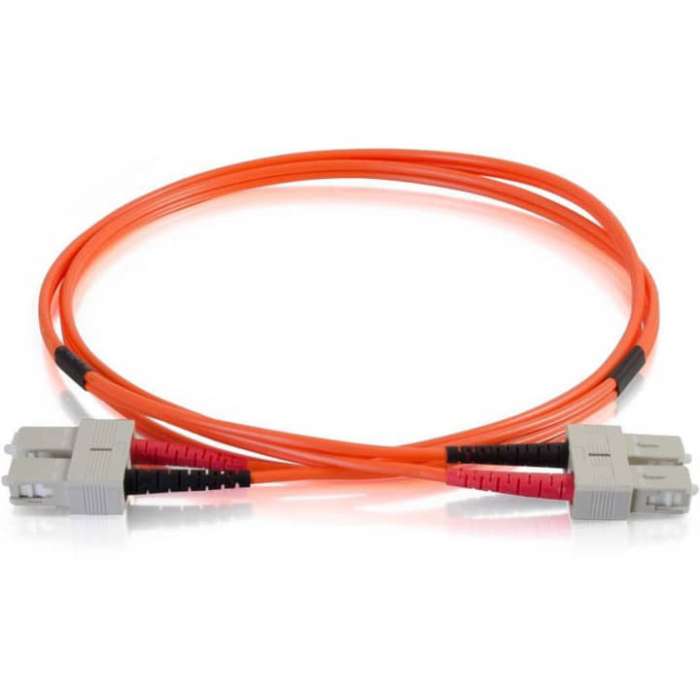

C2G-2m SC-SC 50/125 OM2 Duplex Multimode PVC Fiber Optic Cable

SKU
CGO33002
by C2G
$18.05 /EACH

Delivered in 2-4 business days

Out of stock
  • Perfect for high-bandwidth, high transmission rate applications over long distances
  • Available in SC, ST and LC connectors
  • Available in lengths up to 30m

Cost-effective solution that provides higher bandwidth and transmission rates and supports longer distances with lower loss than 62.5/125 fiber. Specifically designed for use with today's narrower aperture components, this cable is fully compatible with multimode applications. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 50/125 multimode fiber, immune to electrical interference.


ManufacturerLegrand Group
Manufacturer Part Number33002
Manufacturer Website Addresshttp://www.legrand.us
Brand NameC2G
Product NameDuplex Fiber Patch Cable
Product TypeNetwork Cable
Cable TypeFiber Optic
Cable CharacteristicPatch Cable
Cable Length6.56 ft
Connector Type on First EndSC Network - Male
Connector on First End Details2 x SC Network - Male
Connector Type on Second EndSC Network - Male
Connector on Second End Details2 x SC Network - Male
Jacket TypePlenum
Product ColorOrange
Weight (Approximate)0.25 lb
Additional Information
  • Buffer material
PVC
  • Buffer OD
  • 900 µm
  • Jacket OD
  • 3.0 mm
  • Jacket color
  • Orange
  • Min. bandwidth @850 nm
  • 160 kHz/km
  • Min. bandwidth @1310 nm
  • 500 kHz/km
  • Attenuation @850 nm
  • 3.75 dB/km
  • Attenuation @1310 nm
  • 1.5 dB/km
  • Maximum tensile load
  • 100 N/cm
  • Loaded min. bend radius
  • 5 cm
  • Unloaded min. bend radius
  • 3 cm
  • Crush resistance
  • 750 N/cm
  • Impact resistance
  • 1000 cycles
  • Flex resistance
  • 5000 cycles
    Country of OriginChina
    Limited WarrantyLifetime
    BrandC2G
    Weight (lbs)0.1000
    UPC757120330028
    MPN33002
