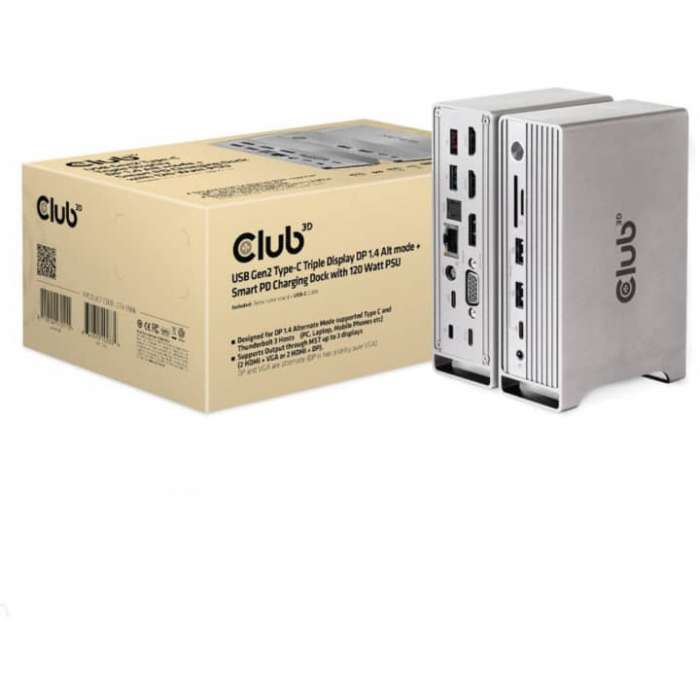

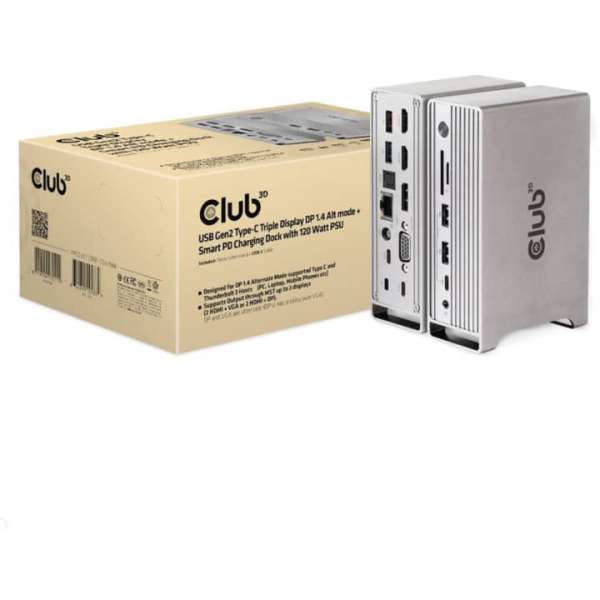

Club 3D CSV-1568 Docking Station, for Notebook/Smartphone/Monitor, 120 W, USB Type C, 3 Displays Supported

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G)for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply). It supports all DP Alt mode1.4/1.2 supported Type-C and ThunderboltT 3 host (PC, Laptop, Mobile phone, etc.) under Windows and under MacOSX based on Intel you will only get limited SST Function or Single display Only. Features:; Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc); Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP is has priority over VGA); When 3 Displays are connected - 16.2Gbps bandwidth will be shared; Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz; DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2; DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2; DP and HDMI support deep color 8/10 bit; DP and HDMI support HDR; DP and HDMI support HDCP2.2&1.4; DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display; Support Gigabit Ethernet 10/100/1000M; Support USB3.2 Gen2 with max 10Gbps data transfer; Support smart charging; Support Digital audio with max 96KHz/24bit sampling rate; Support dual power supplies: Type-C PD charging or DC Jack; Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices; Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
