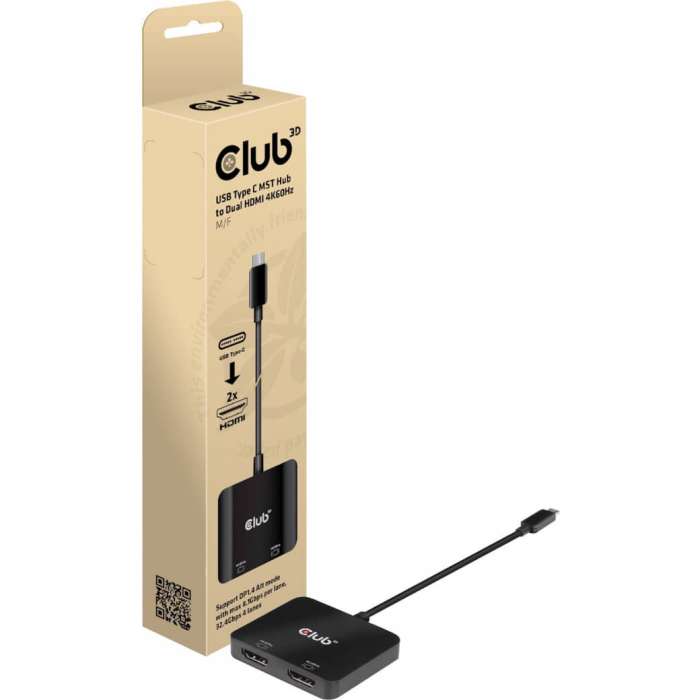

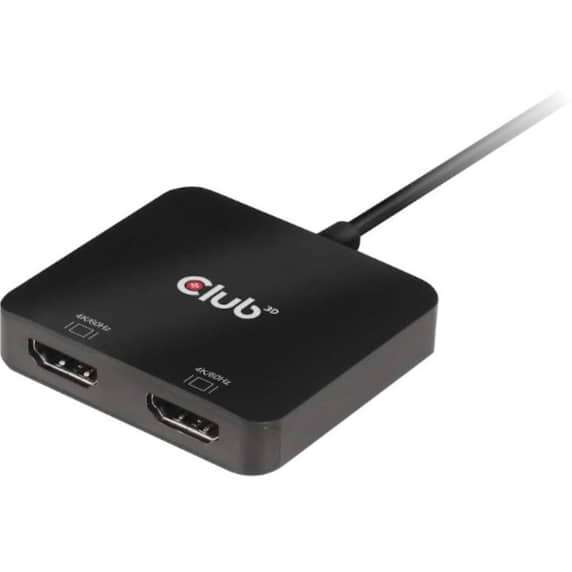

Club 3D USB Type C MST Hub to Dual HDMI 4K60Hz M/F, 2 x HDMI Out, USB
SKU
INGM08RM32
by Club
$60.38 /EACH
Delivered in 2-4 business days
Out of stock
- Support Type-C input, 2 HDMI 4K60Hz outputs.
- Support DP1.4 Alt mode with max 8.1Gbps per lane, 32.4Gbps 4 lanes.
- Support to output dual 4K/60Hz with different pictures under MST mode when working on Windows System.
- Note: to achieve dual max 4K/60Hz, the host should support DP1.4 Alt mode, when working on DP1.2 host, dual max 4K/30Hz due to bandwidth limitation..
- Support to output dual 4K/60Hz with the same picture under SST mode when working on Mac OS System.
- Support 8/10/12 bit color depth output.
- Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0.
- Support HDCP2.2&1.4 .
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Audio & Video Cables
The Club 3D CSV-1556 is a Type-C MST Hub that works from any DP1.4 Alternate mode device to two HDMI 4K60Hz displays. It allows to extend a type-C port of the host to 2 HDMI displays with ultra high definition max 4K/60Hz for each display simultaneously. Supporting MST function, dual displays can be showed with different video contents simultaneously. It can work on all DP Alt mode supported Type-C/Thunderbolt PC.
| Brand Name | Club 3D |
|---|---|
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| HDMI Out (Interfaces/Ports) | Yes |
| Manufacturer Part Number | CSV-1556 |
| Manufacturer | Club 3D |
| Number of HDMI Outputs (Interfaces/Ports) | 2 |
| Number of HDMI Outputs | 2 |
| Product Model | CSV-1556 |
| Product Name | USB Type C MST Hub to Dual HDMI 4K60Hz M/F |
| Product Type | Signal Splitter |
| USB (Interfaces/Ports) | Yes |
| Weight (Approximate) | 1.48 oz |
| Download PDF File |
| Brand | Club |
|---|---|
| Weight (lbs) | 0.1500 |
| UPC | 841615101894 |
| MPN | CSV-1556 |
