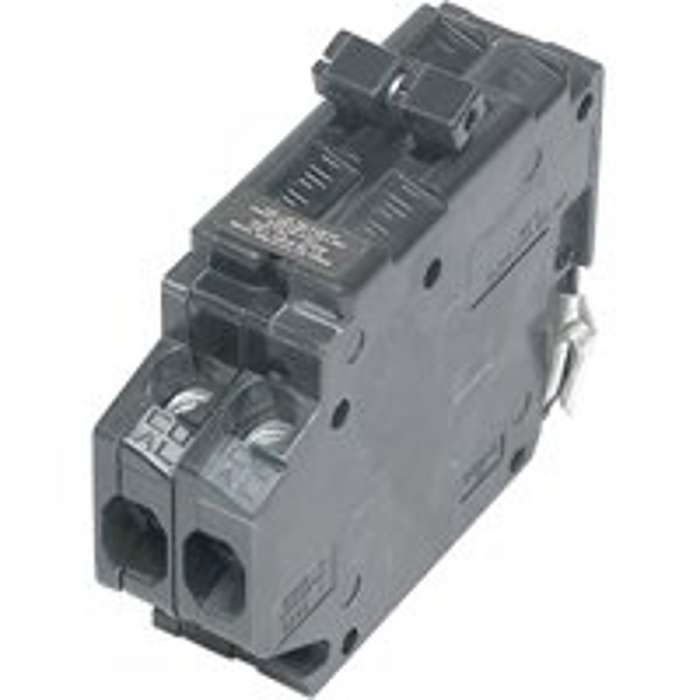

Challenger UBITBA220 Circuit Breaker, Type UBITBA, 20 A, 2 -Pole, 120/240 V, Plug Mounting
SKU
ORG3710548
by CHALLENGER
$86.56 /CARD
Delivered in 2-4 business days
In stock
Requires one 1 in space per breaker. HACR rated. 120/240 VAC. 10,000 AIC. Also known as Challenger "A" Series.
| Actuator Type | Magnetic Thermal |
|---|---|
| Current Rating | 20A |
| Dimensions | 3.63 in L x 1 W x 2.5 H |
| Interrupt Rating | 10kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Operating Frequency | 50/60Hz |
| Suitable for | Thomas and Betts/Challenger Load Centers |
| Terminal Type | Lug |
| Type | Type UBITBA |
| Voltage Rating | 120/240V |
| Wire Size | 14 to 4AWG |
| Weight (lbs) | 0.4800 |
|---|---|
| Brand | CHALLENGER |
| UPC | 094925019124 |
| MPN | UBITB-A220 |
