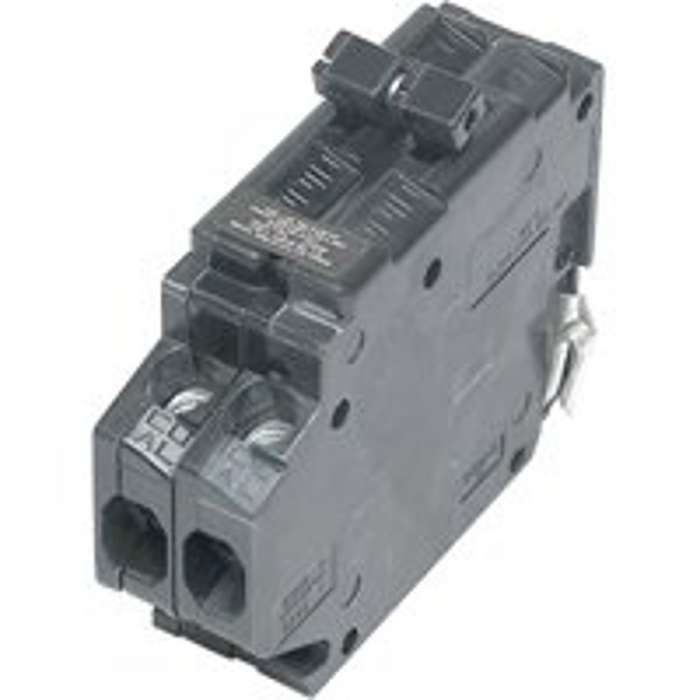

Name: Challenger UBITBA250 Circuit Breaker, Type UBITBA, 50 A, 2 -Pole, 120/240 V, Standard Trip, Plug Mounting
Price: 89.86 USD
Availability: InStock

Requires one 1 in space per breaker. HACR rated. 120/240 VAC. 10,000 AIC. Also known as Challenger "A" Series.

Current Rating	50A
Dimensions	3.63 in L x 1 W x 2.5 H
Interrupt Rating	10kA
Mounting Type	Plug
Number of Phases	1
Number of Poles	2
Operating Frequency	50/60Hz
Suitable for	Thomas and Betts/Challenger Load Centers
Terminal Type	Lug
Trip Type	Standard
Type	Type UBITBA
Voltage Rating	120/240V
Wire Size	14 to 4AWG

Weight (lbs)	0.630000
UPC	094925019155
MPN	UBITB-A250

Challenger UBITBA250 Circuit Breaker, Type UBITBA, 50 A, 2 -Pole, 120/240 V, Standard Trip, Plug Mounting
