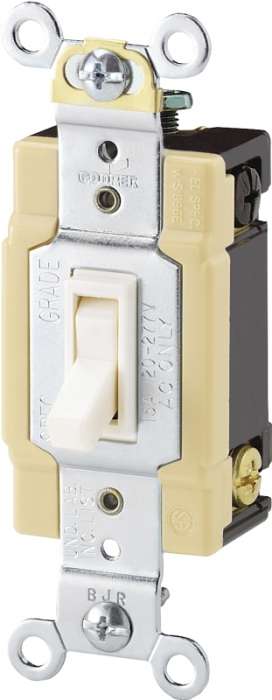

Eaton 1242-7V-SPL1 Toggle Switch, 15 A, 120 V, 4-Position, Screw Terminal, Ivory
SKU
ORG9236696
by Eaton
$25.03 /EACH
Delivered in 2-4 business days
Out of stock
- Three-way switches feature additional push-in common termination for feed-through tapping
- Push-in terminals accept #14 AWG solid wire only while side wire terminals accept up to #10 AWG solid wire
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Tri-combo screws accept slotted, Phillip's and Robertson-head tools for installation flexibility
- Wire looper speeds termination of both #14 and #12 AWG wire
- Lighted toggle glows in the Off position
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Home Electrical & Lighting
Eaton Toggle Switch, 120 V, 15 A, Number of Poles: 1, Number of Positions: 4, Dielectric Strength: 1500 V, Terminal Type: Screw, Temperature Rating: -20 to 60 deg C, Strap Mounting, Housing Material: PVC/Polycarbonate/Thermoplastic, Ivory
| Color | Ivory |
|---|---|
| Current Rating | 15A |
| Dielectric Strength | 1500V |
| Housing Material | PVC/Polycarbonate/Thermoplastic |
| Mounting Type | Strap |
| Number of Poles | 1 |
| Number Of Positions | 4 |
| Temperature Rating | -20 to 60deg C |
| Terminal Type | Screw |
| Voltage Rating | 120V |
| Brand | Eaton |
|---|---|
| Weight (lbs) | 0.2000 |
| UPC | 032664734984 |
| MPN | WD1242-7V-BOX |
