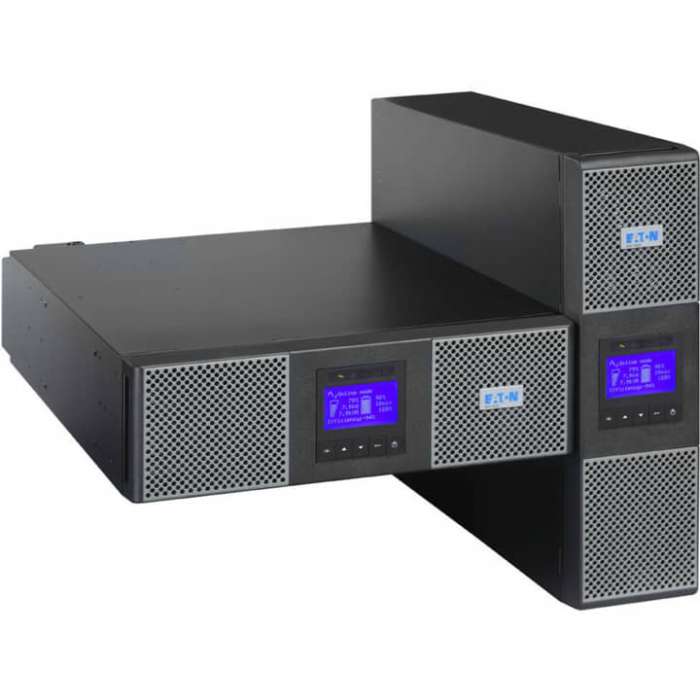

Eaton 9PX 6000VA 5400W 120/208V Online Double-Conversion UPS, L6-30P, 6x 5-20R, 1 L6-30R, 1 L14-30R Outlets, Cybersecure Network Card, Extended Run, 6U Rack/Tower, 6U Rack/Tower, 3 Minute Stand-by, 110 V AC, 220 V AC Input

SKU
INGMQM6269
by EATON
$7,829.67

Delivered in 2-4 business days

In stock
Only 3 left
  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • Included NETWORK-M2 Gigabit network card enables full remote access and control
  • Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
  • Interactive LCD interface keeps you updated on critical load information in real time
  • Optional extended battery modules allow extended runtime to keep equipment powered

6kVA/5.4kW/120V/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX6KP1 is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers. Expandable Internal Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM180RT, sold separately) for hours of extended runtime. Included Distribution Module Helps Accommodate a Range of Connected Equipment The 9PXPPDM1 PowerPass Distribution Module permits a step-down voltage from 208V to 120V to allow the connection of a variety of IT components. It also features a maintenance bypass, which lets you service or replace the 9PX6KP1 without powering down any connected equipment. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.


Backup/Run Time (Full Load)3 Minute
Backup/Run Time (Half Load)8 Minute
Battery CharacteristicsMaintenance-free/Sealed
Battery ChemistryLead Acid
Brand NameEaton
Bypass SwitchInternal
Country of OriginChina
Depth28"
Emergency Power OFFYes
Environmental CertificationRoHS
Environmentally FriendlyYes
Form FactorRack/Tower
Height10.2"
Input Frequency70 Hz
Input Voltage110 V AC
Input Voltage220 V AC
Load Capacity (VA)6000 VA
Manufacturer Part Number9PX6KP1
ManufacturerEaton Corporation
Network (RJ-45) (Interfaces/Ports)Yes
Network (RJ-45)Yes
Network ManagementSNMP Manageable
Output Frequency60 Hz
Output Voltage120 V AC
Output Voltage200 V AC
Output Voltage208 V AC
Output Voltage220 V AC
Output Voltage230 V AC
Output Voltage240 V AC
Overload ProtectionYes
Package Contents9PX6K 6kVA UPS; 9PXPPDM1 PowerPass Distribution Module; Network-MS Web/SNMP Card; 4-Post Rail Kit; User Manual; Quick Start Guide; Tower Pedestals; Intelligent Power Software Suite CD; RS-232 Serial Cable; USB Cable; Cable Gland for Hardwire Conection; Phillips Head Screw Driver
Plug/Connector TypeNEMA L6-30P
Product Family9PX
Product Name9PX6K 6kVA UPS
Product Series9PX
Product TypeDouble Conversion Online UPS
Rack Height6U
Receptacle Detail1 x NEMA L14-30R
Receptacle Detail1 x NEMA L6-30R
Receptacle Detail6 x NEMA 5-20R
Receptacle TypeNEMA 5-20R
Receptacle TypeNEMA L14-30R
Receptacle TypeNEMA L6-30R
Serial Port (Interfaces/Ports)Yes
Software IncludedEaton Intelligent Power Software
Transfer Time0 ns
USB (Interfaces/Ports)Yes
Weight (Approximate)200.62 lb
Width17"
UPC743172039811
Weight (lbs)263.0000
MPN9PX6KP1
BrandEATON
