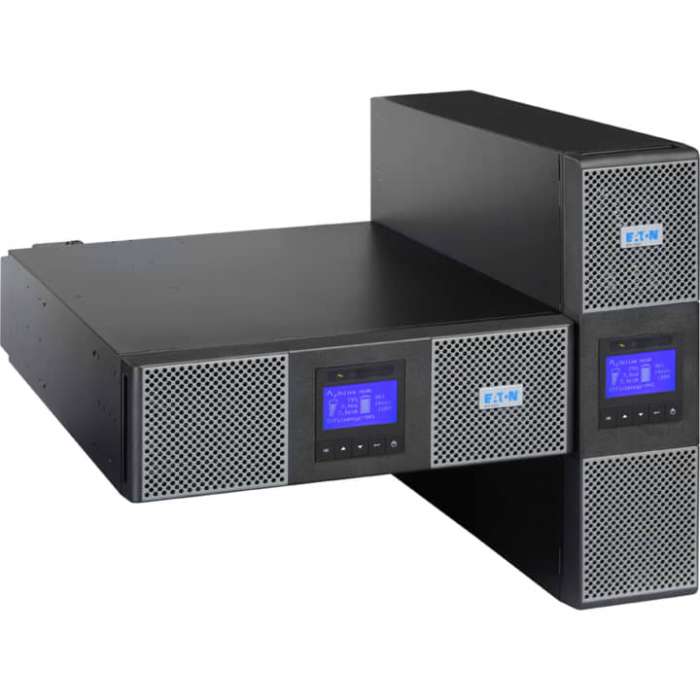

Eaton 9PX 6000VA 5400W 208V Online Double-Conversion UPS, L6-30P, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower, 3U Rack/Tower, 3 Minute Stand-by, 110 V AC, 220 V AC Input
Delivered in 2-4 business days
- Optional extended battery modules allow extended runtime to keep equipment powered.
- Interactive LCD interface keeps you updated on critical load information in real time.
- Exclusive ABM technology with 3-stage charging increases internal battery life by 50%.
- Included NETWORK-M2 Gigabit network card enables full remote access and control.
- Keeps equipment running during outages to allow time for file saves and safe shutdown .
6kVA/5.4kW/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX6K is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers. Expandable Internal Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM180RT, sold separately) for hours of extended runtime. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions. NEMA Outlets Protect Your Connected Components Two L6-20R and two L6-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX6K also supports hardwired output.
Backup/Run Time (Full Load) | 3 Minute |
---|---|
Backup/Run Time (Half Load) | 8 Minute |
Battery Characteristics | Maintenance-free/Sealed |
Battery Chemistry | Lead Acid |
Brand Name | Eaton |
Bypass Switch | Optional |
Country of Origin | Philippines |
Depth | 28" |
Emergency Power OFF | Yes |
Environmental Certification | RoHS |
Environmentally Friendly | Yes |
Form Factor | Rack/Tower |
Height | 5.1" |
Input Frequency | 70 Hz |
Input Voltage | 110 V AC |
Input Voltage | 220 V AC |
Load Capacity (VA) | 6000 VA |
Manufacturer Part Number | 9PX6K |
Manufacturer | Eaton Corporation |
Network (RJ-45) (Interfaces/Ports) | Yes |
Network (RJ-45) | Yes |
Network Management | SNMP Manageable |
Output Frequency | 60 Hz |
Output Voltage | 200 V AC |
Output Voltage | 208 V AC |
Output Voltage | 220 V AC |
Output Voltage | 230 V AC |
Output Voltage | 240 V AC |
Overload Protection | Yes |
Package Contents | 9PX6K 6kVA Tower/Rack Mountable UPS; Network-MS Web/SNMP Card; 4-Post Rail Kit; User Manual; Quick Start Guide; Tower Pedestals; Intelligent Power Software Suite CD; RS-232 Serial Cable; USB Cable; Cable Gland for Hardwire Conection; Phillips Head Screw Driver |
Plug/Connector Type | NEMA L6-30P |
Product Family | 9PX |
Product Name | 9PX6K 6kVA Tower/Rack Mountable UPS |
Product Series | 9PX |
Product Type | Double Conversion Online UPS |
Rack Height | 3U |
Receptacle Detail | 1 x NEMA L6-20R |
Receptacle Detail | 2 x NEMA L6-30R |
Receptacle Type | Hardwired |
Receptacle Type | NEMA L6-20R |
Receptacle Type | NEMA L6-30R |
Serial Port (Interfaces/Ports) | Yes |
Software Included | Eaton Intelligent Power Software |
Transfer Time | 0 ns |
USB (Interfaces/Ports) | Yes |
Weight (Approximate) | 105.82 lb |
Width | 17" |
UPC | 743172039248 |
---|---|
Weight (lbs) | 127.0000 |
MPN | 9PX6K |
Brand | EATON |
