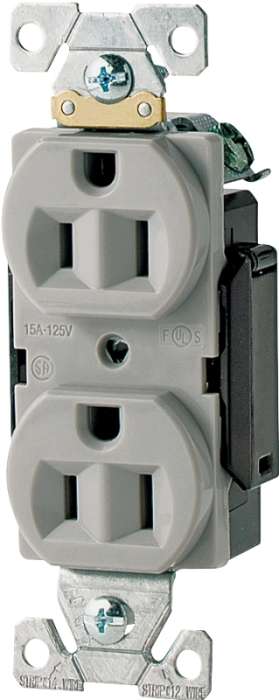

Eaton Cooper Wiring AH5252 AH5252W Duplex Receptacle, 2 -Pole, 15 A, 125 V, Back, Side Wiring, NEMA: 5-15R, White
SKU
ORG4607347
$19.61 /EACH
Delivered in 2-4 business days
In stock
- Exclusive 5-leaf, solid brass line contacts ensure smooth plug blade insertion and long-term retention
- Exclusive 0.03 in solid brass, non riveted, integral one-piece grounding shunt system assures ground integrity under heaviest use
- High-impact- and chemical-resistant nylon face
- Tapered lead in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Long, broad mounting strap helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- Screw-Catch feature on duplex devices speeds mounting of wallplates
- For wide variety of environments ranging from commercial office space to production areas within a steel mill
Categories: Tools & Garage, Electrical, Rough Electrical, Switches & Receptacles, Duplex Receptacles
Industrial Specification Grade Straight Blade Receptacles - 15 A-125 V, NEMA 5-15R. Designed from the inside out, these receptacles meet and exceed the UL 498 and Federal Specification WC-596 standards to withstand the most abusive environments and excel in applications that demand the highest levels of performance.
| Color | White |
|---|---|
| Current Rating | 15A |
| Dimensions | 4.2 in L x 1.3 in W x 0.88 in D |
| Frequency Rating | 60Hz |
| Mounting Type | Wall |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -20 to 70deg C |
| Voltage Rating | 125V |
| Wire Size | 14 to 10AWG |
| Wiring Type | Back Side |
| UPC | 032664735264 |
|---|---|
| Weight (lbs) | 0.2000 |
| MPN | AH5252W |
| Brand | Eaton Cooper Wiring |
