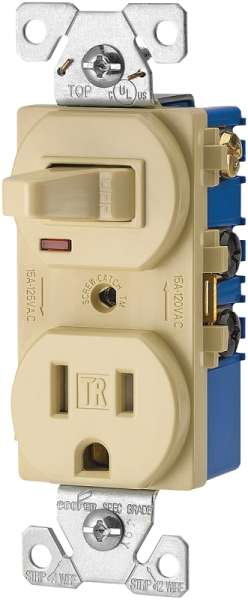

EATON TR274V Combination Switch, 1 -Pole, 15 A, 120/125 V, NEMA: NEMA 5-15R, Ivory

SKU
ORG3114428
by EATON
$23.18 /EACH

Delivered in 2-4 business days

In stock

Traditional heavy-duty-grade combination switch with receptacle features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is on when switch is on. Switch is horsepower-rated for motor loads per UL 20. Thermoplastic toggle, top and back body are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.


ColorIvory
Current Rating15A
Dimensions1.3 in L x 1.08 in W x 4.19 in H
MaterialPVC/Thermoplastic
Mounting TypeFlush
NEMA ConfigurationNEMA 5-15R
Number of Poles1
Number Of Wires3
Operating Temperature-20 to 60deg C
Suitable forReceptacle Toggle Switch
Voltage Rating120/125V
Wire Size14 to 12AWG
Wiring TypeBack and Side
Download PDF File
UPC032664750250
Weight (lbs)4.4300
MPNTR274V
BrandEATON
