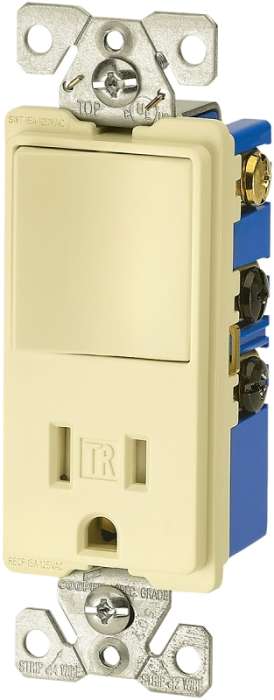

Eaton Cooper Wiring TR7730V Combination Switch/Receptacle, 1 -Pole, 15 A, 120/277 V, Ivory

SKU
ORG2876175
$25.68 /EACH
In stock

Decorator heavy-duty-grade combination device features 15 A 120 V switch and tamper-resistant 15 A receptacle. Features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR7730 switch is horsepower-rated for motor loads per UL 20. Thermoplastic rocker, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.


ColorIvory
Current Rating15 A
Dielectric Strength1500 V
Dimensions1.08 in D x 4.19 in H
MaterialThermoplastic
Mounting TypeFlush
Number of Poles1
Operating Temperature-20 to 60 deg C
Terminal TypeScrew
TypeHeavy-Duty
Voltage Rating120/277 V
Wire Size14 to 12 AWG
Wiring TypeBack and Side
BrandEaton Cooper Wiring
Weight (lbs)4.430000
UPC032664722493
MPNTR7730V
