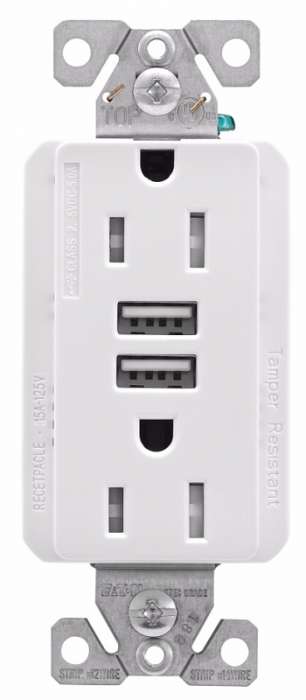

Eaton Cooper Wiring TRUSB5A15 TRUSB5A15W-K-L Receptacle, 2 -Pole, 5 A, 125 VAC, 2 -USB Port, Type A USB, White
SKU
ORG4896346
$45.92 /EACH
Delivered in 2-4 business days
Out of stock
- Standard AC duplex receptacle with two USB charging ports rated at 5 A
- Dual USB ports charges most compatible USB electronic devices
- Tamper-resistant shutters provide compliance with 2014 NEC® Article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
- Replaces a standard duplex receptacle
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire strippers speed installation
- Triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Switches & Sockets
Eaton Cooper Wiring TRUSB5A15 Receptacle, Duplex, 125 VAC, 5 A, 140 kHz Frequency, 2 Pole, 3 Wires, 2 USB Ports, Type A USB, Back and Side Wiring, 14 AWG Wire, NEMA 5-15R, -4 to 140 deg F Operating, Strap Mounting, Thermoplastic/Steel, White, Dimensions: 4.19 in H x 1.3 in W x 1.67 in D
| Color | White |
|---|---|
| Current Rating | 5A |
| Dimensions | 4.19 in H x 1.3 in W x 1.67 in D |
| Frequency Rating | 140kHz |
| Material | Thermoplastic/Steel |
| Mounting Type | Strap |
| NEMA Configuration | NEMA 5-15R |
| Number of Poles | 2 |
| Number of USB Ports | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -4 to 140deg F |
| Type | Duplex |
| USB Type | Type A |
| Voltage Rating | 125VAC |
| Wire Size | 14AWG |
| Wiring Type | Back and Side |
| Brand | Eaton Cooper Wiring |
|---|---|
| Weight (lbs) | 0.3400 |
| UPC | 032664756122 |
| MPN | TRUSB5A15W-K-L |
