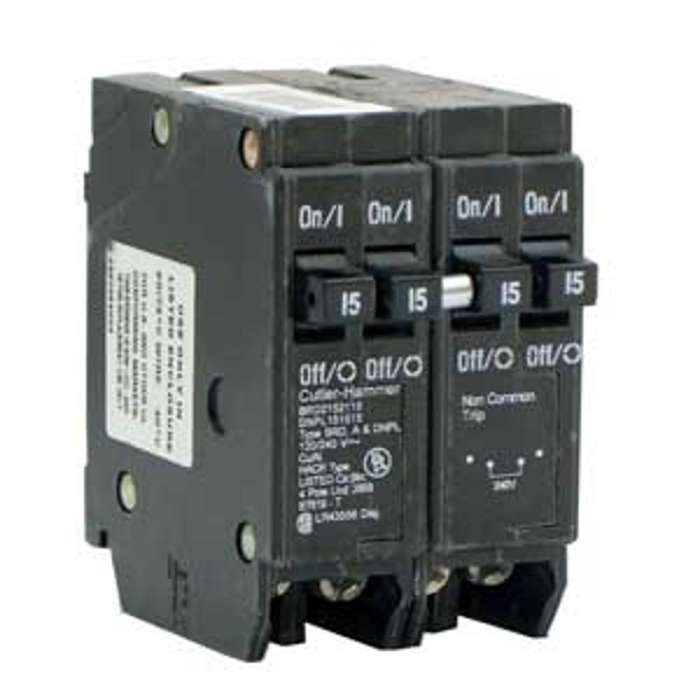

EATON DNPL151515 Circuit Breaker, DNPL, Quad, 15 A, 4 -Pole, 120/240 V, Plug Mounting
SKU
ORG2530145
by EATON
$71.55 /EACH
Delivered in 2-4 business days
In stock
Only 3 left
- Handle position on, off and tripped indication
- One-piece molded case construction
- Hardened cradle for positive action under fault conditions
- Heavy-duty mechanism spring for reliable operation
- Non-abrasive integrally molded pivot for quick mechanism response one-piece moving contact arm for quick on/off response
- Heavy-duty line terminal and spring clip for quick load Center installation and cool operation
- Silver tungsten alloy contacts, CSA approved terminal assembly for use with copper or aluminum wire, screw is backed out for faster insertion of wires
- Unique one-piece heavy-duty DE-ION® arc extinguisher for quick arc interruption
- Robertson/slot load side screw, magnetic assembly for reliable short circuit protection
- Exclusive steel frame calibration provides greater calibration integrity than with screw adjustment
Quadplex construction of Eaton type DNPL plug-in breakers provides various combinations of two-pole and single-pole devices in a 2 in molded case, all plug-in breakers are approved for HACR applications.
| Current Rating | 15A |
|---|---|
| Dimensions | 3 in L x 3 in W x 2 in H |
| Interrupt Rating | 10kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 4 |
| Number Of Spaces | 2 |
| Operating Temperature | 60 to 75deg C |
| Suitable for | CPM/CPL Loadcenters |
| Type | DNPL Quad |
| Voltage Rating | 120/240V |
| Wire Size | 14 to 4AWG |
| Brand | EATON |
|---|---|
| Weight (lbs) | 0.8000 |
| UPC | 622588019252 |
| MPN | DNPL151515 |
