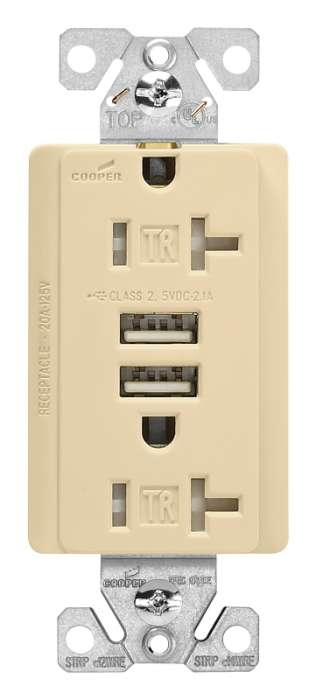

Eaton TR7756V-BOX Combination USB Receptacle, 2-Pole, 20 A Receptacle, 3 A USB, 125 VAC Receptacle, 5 VDC USB, Ivory
SKU
ORG9235763
by Eaton
$63.26 /EACH
Delivered in 2-4 business days
Out of stock
- Standard AC receptacle with two USB charging ports for conveniently charging most electronic components
- Tamper-resistant receptacles provide compliance with 2014 NEC Article 406.12 which states that all 15A and 20A, 125V/AC receptacles installed in dwelling unit's must be tamper-resistant
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- Thermoplastic top and back-body are virtually unbreakable to deliver years of durable performance
- Triple wipe blade contacts and double wipe ground contacts to ensure long-term plug retention
- Convenient patented built-in wire strippers speed installation
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Home Electrical & Lighting
Eaton Combination USB Receptacle, Duplex, 125 VAC Receptacle, 5 VDC USB, 20 A Receptacle, 3 A USB, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, NEMA Configuration: NEMA 5-20R, Flush Mounting, Thermoplastic, Ivory, Dimensions: 2-3/4 in L x 2 in W x 4.36 in H
| Color | Ivory |
|---|---|
| Current Rating | 20 A Receptacle 3 A USB |
| Dimensions | 2-3/4 in L x 2 in W x 4.36 in H |
| Material | Thermoplastic |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 5-20R |
| Number of Poles | 2 |
| Number of USB Ports | 2 |
| Number Of Wires | 3 |
| Type | Duplex |
| Voltage Rating | 125 VAC Receptacle 5 VDC USB |
| Download PDF File |
| Brand | Eaton |
|---|---|
| Weight (lbs) | 0.3700 |
| UPC | 032664731648 |
| MPN | TR7756V-BOX |
