EATON TR775W-BOX-SP Single Receptacle, 2 -Pole, 125 V, 15 A, Side Wiring, NEMA: NEMA 5-15R, White

Name: EATON TR775W-BOX-SP Single Receptacle, 2 -Pole, 125 V, 15 A, Side Wiring, NEMA: NEMA 5-15R, White
Brand: Eaton
SKU: ORG9238015
Price: 9.09 USD
Availability: OutOfStock

SKU

ORG9238015

by Eaton

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$9.09 /EACH

Out of stock

Notify me when this product is in stock

Category: Switches & Sockets

Details

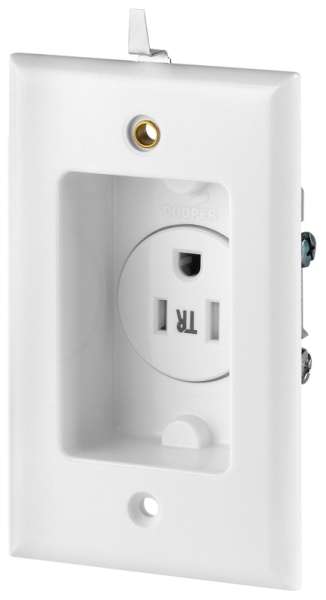

Specification Grade Straight Blade Receptacles, clock Hanger tamper-resistant 15A, 125V, NEMA 5-15R. Provides compliance with 2011 NEC Article 406.12 that states that all receptacles installed dwelling units must be tamper resistant. TR designation provides visual identification. Recessed receptacle features virtually unbreakable thermoplastic housing and tamper-resistant shutters.

Color	White
Current Rating	15A
Dimensions	2-3/4 in W x 1-7/9 in D x 4-1/2 in H
Material	Thermoplastic
Mounting Type	Flush
NEMA Configuration	NEMA 5-15R
Number of Poles	2
Number Of Wires	3
Operating Temperature	-4 to 158deg F
Voltage Rating	125V
Wire Size	14 to 10AWG
Wiring Type	Side
Download PDF File	Data Sheet Manual Specification Sheet

More Information

Brand	Eaton
Weight (lbs)	0.280000
UPC	032664672361
MPN	TR775W-BOX-SP
