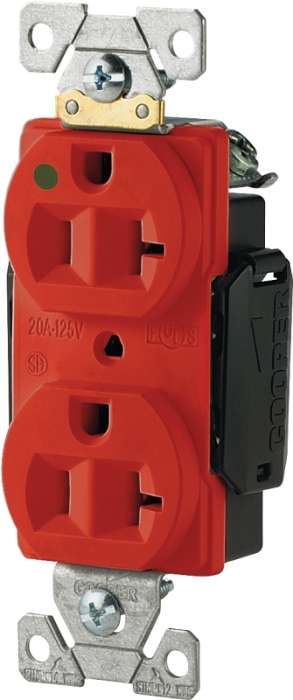

Eaton Wiring Devices AH8300RD Duplex Receptacle, 2 -Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R, Red
SKU
ORG3646460
$24.23 /EACH
Delivered in 2-4 business days
In stock
- Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
- Exclusive 5-leaf solid brass line contacts ensure smooth plug blade insertion and long-term retention
- Rigid, glass reinforced nylon base lends ultimate strength and great high heat resistance in contact carrier
- Solid brass mounting strap with non-riveted, integral one-piece grounding system for highest durability
- High impact-and chemical-resistant nylon face
- Tapered back wiring lead in slots assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws are plated, triple combination (Slot/Phillips/Robertson) head for great corrosion resistance and maximum flexibility
- Long, broad mounting strap helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
Categories: Tools & Garage, Electrical, Rough Electrical, Switches & Receptacles, Duplex Receptacles
Arrow Hart's feature rich line of hospital-grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification WC-596 to provide a consistent means of connectivity where downtime can be critical.
| Color | Red |
|---|---|
| Current Rating | 20 A |
| Dimensions | 4.19 in L x 1.30 in W x 0.88 in D |
| Frequency Rating | 60 Hz |
| Material | Brass |
| Mounting Type | Wall |
| NEMA Configuration | 5-20R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -20 to 70 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Back Side |
| UPC | 032664705076 |
|---|---|
| Weight (lbs) | 0.2300 |
| MPN | AH8300RD |
| Brand | Eaton Wiring Devices |
