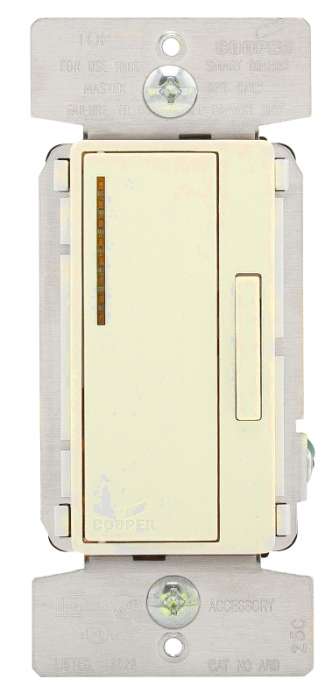

Eaton Wiring Devices ARD-C2-K-L Accessory Dimmer, 1 -Pole, 120 V, 60 Hz, Ivory/Light Almond/White

SKU
ORG3405214
$46.14 /EACH
In stock

Replaces a standard switch. Provides smooth, full range digital dimming for incandescent, halogen, electronic low-voltage, magnetic low-voltage, dimmable LED/CFL and Fluorescent lighting. 300 W dimmable LED/CFL- 600 W Incan/dimmable ELV/halogen/dimmable FLR 600 VA MLV, 120 VAC, 60 Hz requires neutral connection in wallbox. Ability to set min/max dimmer level for maximum compatibility with different loads. Rapid start feature which allows the light to come on instantly in the case of LED/CFL loads and the ability to disable that feature. One master dimmer works with up to five (5) accessory dimmers, Orgill Sku 339-6181. Tri-color packaging which provides one unit box with three color faceplates. cULus Listed and NOM certified.


ColorIvory/Light Almond/White
Dimensions4.2 in L x 1.78 in W x 1.36 in H
Frequency Rating60Hz
MaterialPolycarbonate
Mounting TypeFlush
Number of Poles1
Operating Temperature0 to 40deg C
Terminal TypeLead Wire
TypePreset
Voltage Rating120V
Download PDF File
Brand_OLDEaton Wiring Devices
BrandEaton Wiring Devices
Weight (lbs)0.310000
UPC032664736445
MPNARD-C2-K-L
