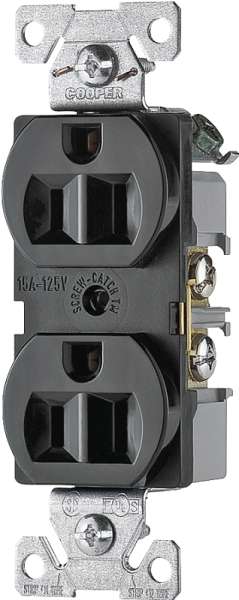

Eaton Wiring Devices BR15BK Duplex Receptacle, 2 -Pole, 15 A, 125 V, Back, Side Wiring, NEMA: 5-15R, Black
SKU
ORG2578904
$17.17 /EACH
Delivered in 2-4 business days
In stock
- Galvanized steel, wraparound yoke mounting strap for great assembly security
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw-Catch feature on duplex devices speeds mounting of wallplates
- Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A
Categories: Tools & Garage, Electrical, Rough Electrical, Switches & Receptacles, Duplex Receptacles
Commercial specification-grade straight blade receptacles - 15 A, 125 V, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
| Color | Black |
|---|---|
| Current Rating | 15A |
| Dimensions | 4.20 in L x 1.30 in W x 0.88 in D |
| Frequency Rating | 60Hz |
| Material | Nylon |
| Mounting Type | Yoke |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -20 to 60deg C |
| Voltage Rating | 125V |
| Wire Size | 14 to 10AWG |
| Wiring Type | Back Side |
| Download PDF File |
| UPC | 032664750717 |
|---|---|
| Weight (lbs) | 0.2100 |
| MPN | BR15BK |
| Brand | Eaton Wiring Devices |
