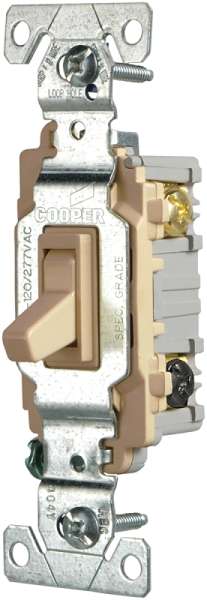

Eaton Wiring Devices CSB315STV-SP Toggle Switch, 15 A, 120/277 V, 3 -Position, Screw Terminal, Ivory

SKU
ORG3322492
$21.40 /EACH
In stock

Small toggle switch blends with standard grade toggles. Larger contacts, backwire clamps on the side terminals. Side wire terminals accept up to number 10 solid wire. Back wire terminal accepts 12 ga or 14 ga wire. Heavy-duty cam action mechanism. Long, broad steel mounting strap, zinc-plated for corrosion resistance. Built-in wire stripper for #12 and #14 wire. Ground screw terminal, stippled line and ground contacts standard. Tri-combo head mounting and terminal screws. 15 A, 120/277 V. cULus listed, NOM certified.


Actuator TypeCam
ColorIvory
Contact MaterialSilver
Current Rating15A
Dielectric Strength1500V
Housing MaterialNylon
Mounting TypeWall
Number of Poles3
Number Of Positions3
Temperature Rating-20 to 60deg C
Terminal TypeScrew
Voltage Rating120/277V
Wattage Rating0.5 to 2hp
Brand_OLDEaton Wiring Devices
BrandEaton Wiring Devices
Weight (lbs)0.130000
UPC032664709975
MPNCSB315STV-SP
