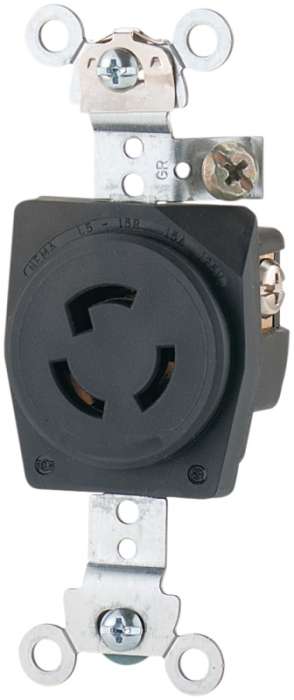

Eaton Wiring Devices CWL515R Single Receptacle, 2 -Pole, 125 V, 15 A, Back and Side Wiring, NEMA: NEMA L5-15
SKU
ORG9234576
$23.73 /EACH
Delivered in 2-4 business days
Out of stock
- Glass reinforced nylon body and face
- One-piece brass contacts offer excellent performance and minimal heat rise
- Back and side wire terminal clamps for easy secure wiring
- Duplex receptacles feature a break off tab for split circuit wiring
- For industrial and commercial applications
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Home Electrical & Lighting
Single locking receptacle. Glass reinforced nylon body and face. One-piece brass contacts. Back and side wire terminal clamps. 15 A, 125 V. CSA Certified. NEMA L5-15.
| Color | Black |
|---|---|
| Current Rating | 15A |
| Dimensions | 4.04 in L x 1.53 in W x 0.82 in D |
| Material | Nylon |
| NEMA Configuration | NEMA L5-15 |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -40 to 115deg C |
| Voltage Rating | 125V |
| Wire Size | 14 to 10AWG |
| Wiring Type | Back and Side |
| Brand | Eaton Wiring Devices |
|---|---|
| Weight (lbs) | 0.1600 |
| UPC | 040893679167 |
| MPN | CWL515R |
