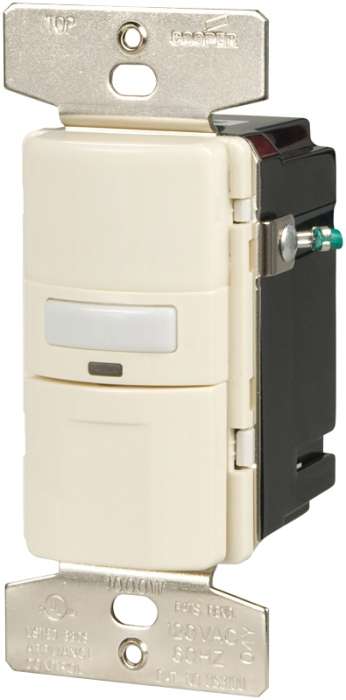

Eaton Wiring Devices OS310U-LA-K Motion Sensor Switch with Nightlight and LED, 8.3 A, 120 V, 1 -Pole, Motion Sensor
SKU
ORG0638346
$54.74 /CARD
Delivered in 2-4 business days
In stock
- Can be wired as a single pole or 3-way device
- Selectable On/Off LED nightlight with press and hold dimming function
- Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
- Push pad design provides minimal travel and crisp actuation
- Replaces a standard light or fan switch
- Occupancy sensor provides a selectable ambient light override preventing lights from switching on, when there is acceptable natural light
- Occupancy sensor version allows to toggle between auto-On/Off or manual-On/auto-Off mode with a simple press and hold of switch
- Occupancy sensor provides for a bypass feature to allow the sensor to perform as a traditional switch
- Electrostatic discharge protection
- No leakage to load in off mode
Occupancy/vacancy sensor switches use advanced Passive Infrared (PIR) technology to sense the movement of heat-emitting bodies. Occupancy sensors provide auto-On/Off or manual-On/auto-Off operation while vacancy sensors provide Manual-On/Auto-Off operation only (CA Title 24 Compliant). The sensors automatically turn lights off after a space becomes vacant and a preset time delay elapses. Both versions provide 1-pole (single-location) and 3-way (multi-location) wiring and work with all lighting load types (INC, MLV, ELV, FLR, CFL, LED). A selectable and dimmable LED nightlight is provided. All sensors are compatible with any decorator-style or decorator screwless wallplate.
| Color | Light Almond |
|---|---|
| Connection Type | Wire |
| Current Rating | 8.3A |
| Frequency Rating | 60Hz |
| Includes | Mid-Size Decorator Wallplate |
| Lamp Type | CFL Fluorescent Halogen Incandescent LED |
| Material | Polycarbonate |
| Mounting Type | Wall |
| Number of Poles | 1 |
| Sensing Angle | 180deg |
| Sensing Range | 1000sq-ft |
| Sensor Type | Motion |
| Temperature Rating | 0 to 40deg C |
| Timer Range | 30 s to 30 min |
| Voltage Rating | 120V |
| Wattage Rating | 600W |
| Download PDF File |
| UPC | 032664710308 |
|---|---|
| Weight (lbs) | 0.4000 |
| MPN | OS310U-LA-K |
| Brand | Eaton Wiring Devices |
