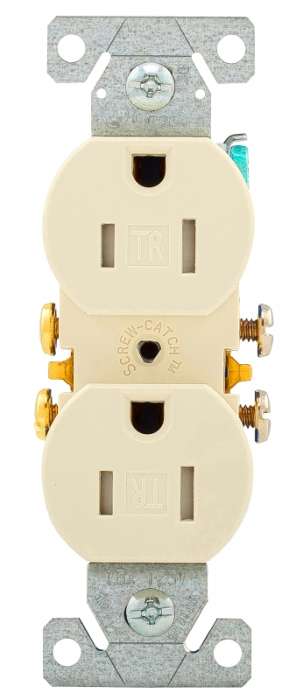

Eaton Wiring Devices TR270LA Duplex Receptacle, 2 -Pole, 15 A, 125 V, Push-in, Side Wiring, NEMA: 5-15R

SKU
ORG2706505
$33.68 /10EACH
In stock

Receptacles provide compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. "TR" designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.


ColorLight Almond
Current Rating15A
Dimensions4.19 in L x 1.30 in W x 0.69 in D
Frequency Rating60Hz
MaterialPVC
Mounting TypeWall
NEMA Configuration5-15R
Number of Poles2
Number Of Wires3
Operating Temperature-20 to 60deg C
Voltage Rating125V
Wire Size14 to 10AWG
Wiring TypePush-in Side
Download PDF File
BrandEaton Wiring Devices
Weight (lbs)0.130000
UPC032664665278
MPNTR270LA
