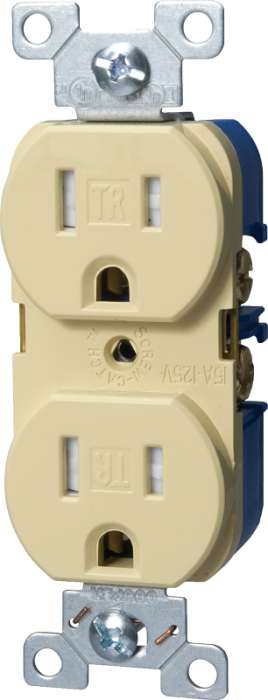

Eaton Wiring Devices TRBR15V-BXSP Duplex Receptacle, 2 -Pole, 15 A, 125 V, Back, Side Wiring, NEMA: 5-15R, Ivory
SKU
ORG4636023
$20.69 /EACH
Delivered in 2-4 business days
In stock
- Galvanized steel, wraparound yoke mounting strap for great assembly security
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw-Catch feature on duplex devices speeds mounting of wallplates
- Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A
Categories: Tools & Garage, Electrical, Rough Electrical, Switches & Receptacles, Duplex Receptacles
Commercial specification-grade straight blade receptacles - tamper-resistant 15 A - 125 V, NEMA 5-15R. Provides compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper resistant. "TR" designations provide visual identification.
| Color | Ivory |
|---|---|
| Current Rating | 15 A |
| Dimensions | 4 in L x 1.24 in W x 0.79 in D |
| Frequency Rating | 60 Hz |
| Material | PVC |
| Mounting Type | Wall |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -20 to 60 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Back Side |
| UPC | 032664668661 |
|---|---|
| Weight (lbs) | 0.0400 |
| MPN | TRBR15V-BXSP |
| Brand | Eaton Wiring Devices |
