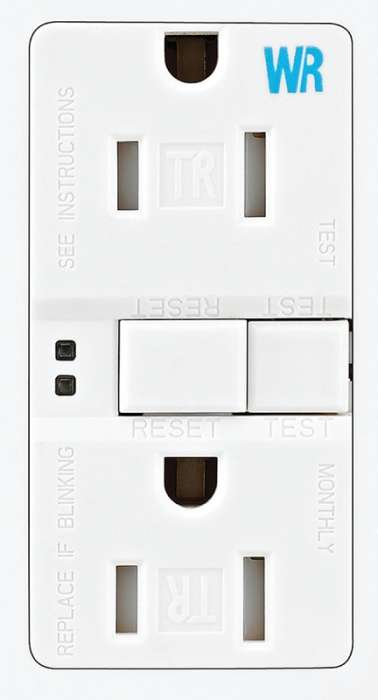

Eaton Wiring Devices TWRSGF15W GFCI Duplex Receptacle, 2 -Pole, 15 A, 125 V, Back, Side Wiring, NEMA: 5-15R, White
SKU
ORG4636171
$46.39 /EACH
Delivered in 2-4 business days
Out of stock
- Provides compliance with 2017 NEC Article 406.9 that states that all receptacles installed in wet and damp locations must be weather-resistant
- Manufactured with the highest grade materials; durable impact-resistant thermoplastic face and back body is virtually unbreakable
- TR designation provides visual identification that device has tamper resistant shutters preventing insertion of foreign objects
- WR identifier quickly indicates during inspections that a weather resistant receptacle has been installed
- Terminal screws backed out ready for wiring
- Extra-long and extra-wide mounting straps
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Side wire terminals accept up to #10 solid or stranded wire
- For commercial, industrial and institutional uses like residential decks, porches, patios, garages and yards; commercial convenience outlets in damp or wet areas; residential, multi-family or commercial dwelling units; residential, multi-family or commercial pool and spa areas; indoor or outdoor public facilities and recreation areas
Weather-resistant duplex GFCIs are built to meet every need in commercial, industrial and institutional settings, whether permanent or temporary - and is fully compliant with the latest UL943 standards for GFCIs, providing the most recent change to the standard by offering self testing capability. Complies with 2017 NEC Article 406.9 that states that all receptacles installed in wet or damp locations must be weather-resistant. Weather-resistant receptacles offer protection from rain, snow, ice, moisture and humidity when properly installed in an approved weather protective or while-in use cover. Weather-resistant receptacles are for use in any residential or commercial outdoor location. Designed with enhanced nylon and corrosion-resistant metal components weather-resistant receptacles are extra durable. Combine WR receptacles with any of our WeatherBox while-in-use protective covers for tough protection against the elements.
| Color | White |
|---|---|
| Current Rating | 15A |
| Dimensions | 4.2 in L x 1.68 in W x 1.27 in D |
| Frequency Rating | 60Hz |
| Includes | Wallplate |
| Material | Polypropylene |
| Mounting Type | Wall |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -35 to 66deg C |
| Voltage Rating | 125V |
| Wire Size | 14 to 10AWG |
| Wiring Type | Back Side |
| Brand | Eaton Wiring Devices |
|---|---|
| Weight (lbs) | 0.4100 |
| UPC | 032664742989 |
| MPN | TWRSGF15W |
