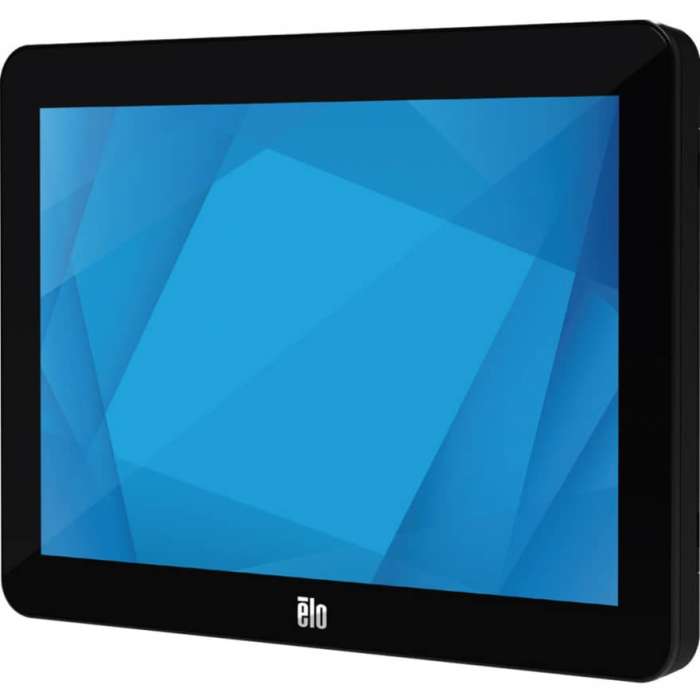

Elo 1002L 10.1" LCD Touchscreen Monitor, 16:10, 29 ms, 10" Class, TouchPro Projected Capacitive
Delivered in 2-4 business days
- Experience an energetic display of colors, contrast and pictures with the wxga lcd touchscreen monitor
- The WXGA touchscreen highlights WXGA display with the resolution of up to 1280 x 800 pixels
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- The 350 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint. Single Cable Connection. The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn't equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC. One for You.One for Your Customers. The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display - or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion. Well-Suited for... Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
| Aspect Ratio | 16:10 |
|---|---|
| Backlight Technology | LED |
| Brand Name | Elo |
| Brightness (Video) | 350 Nit |
| Brightness | 350 Nit |
| Built-in Devices | USB Hub |
| Color Supported (Video) | 262,000 Colors |
| Color Supported | 262,000 Colors |
| Country of Origin | China |
| Curved Screen | No |
| Depth | 1.1" |
| Environmental Certification | China RoHS |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | Anti-glare |
| Features | Cable Lock Slot |
| Features | On-screen Display (OSD) |
| HDMI (Interfaces/Ports) | Yes |
| HDMI | Yes |
| Height | 7" |
| Horizontal Frequency | 31.50 kHz to 80 kHz |
| Horizontal Viewing Angle | 170 |
| Limited Warranty | 3 Year |
| Manufacturer Part Number | E155834 |
| Manufacturer | Elo Touch Solutions, Inc |
| Maximum Resolution (Video) | 1280 x 800 |
| Maximum Resolution | 1280 x 800 |
| Mean Time Between Failures (MTBF) | 5.7 Year |
| Mount Type | Rear Mount |
| Multi-touch Screen (Touchscreen Information) | Yes |
| Multi-touch Screen | Yes |
| Native Contrast Ratio (Video) | 800:1 |
| Number of Speakers (Audio) | 2 |
| Number of USB Ports (Interfaces/Ports) | 4 |
| Off-Mode Power Consumption | 200 mW |
| Operating Power Consumption | 7.43 W |
| Package Contents | 1002L Touchscreen Monitor; HDMI cable; USB Cable (USB Type-A to Type-C); Quick Install Guide; EEI Label; Power brick; NA Power cable; EU Power cable; 2 x Cable clamps; 2 x Tie wraps; 3 x Screws (M3x8mm) for cable clamps; 2 x Screws (M3x10mm) for cable doors |
| Packaged Quantity | 1 |
| Panel Technology | Thin Film Transistor (TFT) |
| Placement | Tabletop |
| Product Color | Black |
| Product Family | 02 |
| Product Model | 1002L |
| Product Name | 1002L Touchscreen Monitor |
| Product Series | 02 |
| Product Type | LCD Touchscreen Monitor |
| Response Time | 29 ms |
| Screen Mode | WXGA |
| Screen Size Class | 10" |
| Screen Surface | Anti-glare |
| Speaker Output Power (Audio) | 4 W |
| Speakers (Audio) | Yes |
| Speakers | Yes |
| Standby Power Consumption | 1.26 W |
| Touchscreen (Touchscreen Information) | Yes |
| Touchscreen Type (Touchscreen Information) | TouchPro Projected Capacitive |
| Touchscreen Type | TouchPro Projected Capacitive |
| Touchscreen | Yes |
| USB (Interfaces/Ports) | Yes |
| USB Type-C (Interfaces/Ports) | Yes |
| USB Type-C | Yes |
| USB | Yes |
| Vertical Frequency | 60 Hz |
| Vertical Viewing Angle | 170 |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| VGA (Interfaces/Ports) | Yes |
| VGA | Yes |
| Viewable Screen Size | 10.1" |
| Weight (Approximate) | 1.95 lb |
| Width | 10" |
| Download PDF File |
| Brand | Elo |
|---|---|
| Weight (lbs) | 4.7000 |
| UPC | 843173124582 |
| MPN | E155834 |
