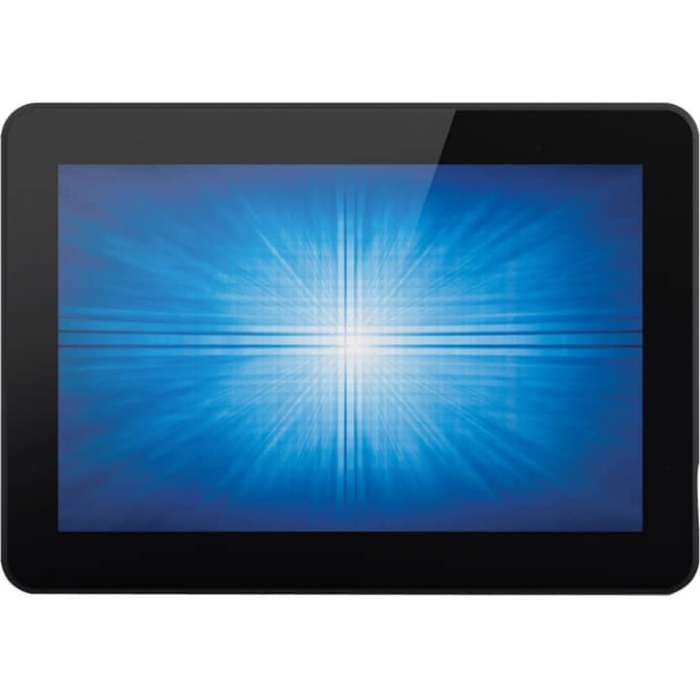

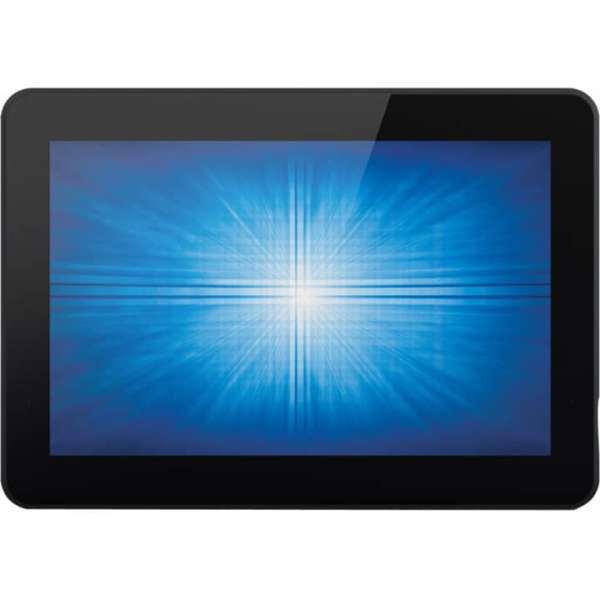

Elo 1093L 10.1" Open-frame LCD Touchscreen Monitor, 16:10, 25 ms, 10" Class, TouchPro Projected Capacitive
Delivered in 2-4 business days
The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.Touch ready.This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.Other features.; 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities; Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount; Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing; Display Port and VGA video interfaces
Aspect Ratio | 16:10 |
---|---|
Backlight Technology | LED |
Brand Name | Elo |
Brightness (Video) | 350 Nit |
Brightness | 350 Nit |
Certifications & Standards | TÜV |
Color Supported (Video) | 262,000 Colors |
Color Supported | 262,000 Colors |
Contrast Ratio (Video) | 800:1 |
Contrast Ratio | 800:1 |
Curved Screen | No |
Depth | 1.5" |
DisplayPort (Interfaces/Ports) | Yes |
DisplayPort Version (Interfaces/Ports) | 1.1a |
DisplayPort | Yes |
Energy Consumption per Year | 10 kWh |
Environmental Certification | China RoHS |
Environmental Certification | RoHS |
Environmental Certification | WEEE |
Environmentally Friendly | Yes |
Features | On-screen Display (OSD) |
HDMI (Interfaces/Ports) | Yes |
HDMI Version (Interfaces/Ports) | 1.3 |
HDMI | Yes |
Height | 7" |
Horizontal Frequency | 30 kHz to 60 kHz |
Horizontal Viewing Angle | 170 |
Limited Warranty | 3 Year |
Manufacturer Part Number | E321195 |
Manufacturer | Elo Touch Solutions, Inc |
Maximum Resolution (Video) | 1280 x 800 |
Maximum Resolution | 1280 x 800 |
Mean Time Between Failures (MTBF) | 5.7 Year |
Mount Type | Flush Mount |
Multi-touch Screen (Touchscreen Information) | Yes |
Multi-touch Screen | Yes |
Off-Mode Power Consumption | 500 mW |
Operating Power Consumption | 25 W |
Package Contents | 1093L 10.1" Open Frame Touchscreen (RevB); HDMI Cable; VGA Cable; RJ45 OSD Remote; Touch USB Cable; User Manual CD; Quick Install Guide; EEI Label; Japan Class-B TM info sheet |
Packaged Quantity | 1 |
Panel Technology | Thin Film Transistor (TFT) |
Product Color | Black |
Product Model | 1093L |
Product Name | 1093L 10.1" Open Frame Touchscreen (RevB) |
Product Type | Open-frame LCD Touchscreen Monitor |
Response Time | 25 ms |
Screen Mode | WXGA |
Screen Size Class | 10" |
Standby Power Consumption | 700 mW |
TAA Compliant | No |
Touchscreen (Touchscreen Information) | Yes |
Touchscreen Type (Touchscreen Information) | TouchPro Projected Capacitive |
Touchscreen Type | TouchPro Projected Capacitive |
Touchscreen | Yes |
USB (Interfaces/Ports) | Yes |
USB Standard (Interfaces/Ports) | USB 2.0 |
USB | Yes |
Vertical Frequency | 50 Hz to 75 Hz |
Vertical Viewing Angle | 170 |
VESA Mount Compatible | Yes |
VESA Mount Standard | 75 x 75 |
VGA (Interfaces/Ports) | Yes |
VGA | Yes |
Viewable Screen Size | 10.1" |
Weight (Approximate) | 2.65 lb |
Width | 10.1" |
Download PDF File |
UPC | 815335025778 |
---|---|
Weight (lbs) | 5.7000 |
MPN | E321195 |
Prop65 Warning | WARNING This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65WARNINGs.ca.gov |
Brand | Elo |
