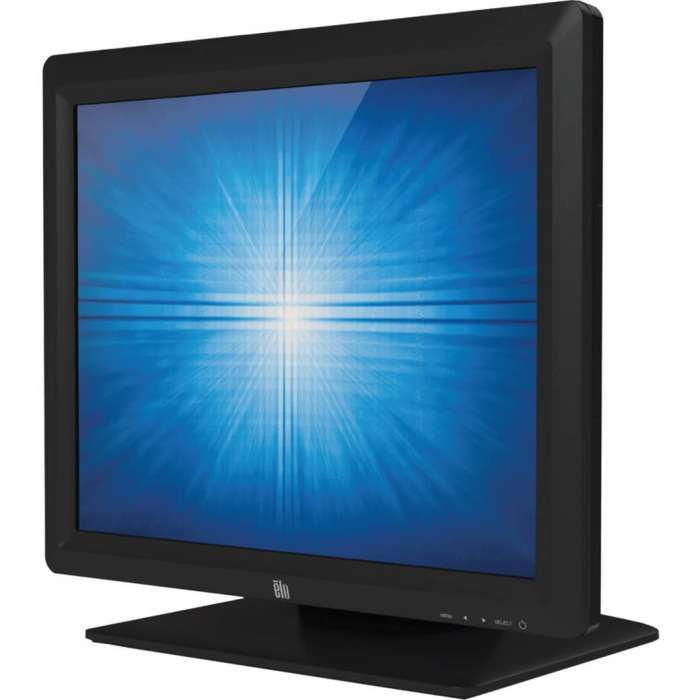

Elo 1517L 15" LCD Touchscreen Monitor, 4:3, 16 ms, 15" Class, Surface Acoustic Wave
SKU
INGMTG7787
by Elo
$596.77 /EACH
Delivered in 2-4 business days
In stock
- The XGA-2 touchscreen highlights XGA-2 display with the resolution of up to 1024 x 768 pixels
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- Enjoy crisp content and energetic hues with the 250 Nit brightness
Category: POS Monitors
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
Adjustable Display Angle | Yes |
---|---|
Aspect Ratio | 4:3 |
Backlight Technology | LED |
Brand Name | Elo |
Brightness (Video) | 250 Nit |
Brightness | 250 Nit |
Certifications & Standards | C-Tick; cUL; IC; CCC; CE; VCCI; KCC; e-Standby; CoC; BSMI; UL; FCC; CB; IMERC; IEC 60320 C6 |
Color Supported (Video) | 16.2 Million Colors |
Color Supported | 16.2 Million Colors |
Contrast Ratio (Video) | 700:1 |
Contrast Ratio | 700:1 |
Country of Origin | China |
Depth with Stand | 7.80" |
Environmental Certification | China RoHS |
Environmental Certification | RoHS |
Environmental Certification | WEEE |
Environmentally Friendly | Yes |
Features | Security Lock |
Height with Stand | 12.50" |
Horizontal Frequency | 60 kHz |
Horizontal Viewing Angle | 160 |
Input Voltage | 110 V AC |
Input Voltage | 12 V DC |
Input Voltage | 220 V AC |
Limited Warranty | 3 Year |
Manufacturer Part Number | E829550 |
Manufacturer | Elo Touch Solutions, Inc |
Maximum Resolution (Video) | 1024 x 768 |
Maximum Resolution | 1024 x 768 |
Mount Type | Desk Mountable |
Mount Type | Pole Mount |
Mount Type | Wall Mountable |
Off-Mode Power Consumption | 1.30 W |
Operating Power Consumption | 12 W |
Package Contents | 1517L Rev B 15-inch Multifunction Desktop; Detachable Touch and Video Cables; Power Cable |
Platform Supported | PC |
Product Color | Black |
Product Model | 1517L |
Product Name | 1517L Rev B 15-inch Multifunction Desktop |
Product Type | LCD Touchscreen Monitor |
Response Time | 16 ms |
Screen Mode | XGA-2 |
Screen Size Class | 15" |
Serial Port (Interfaces/Ports) | Yes |
Standard Refresh Rate (Video) | 75 Hz |
Standard Refresh Rate | 75 Hz |
Standby Power Consumption | 1.70 W |
Touchscreen (Touchscreen Information) | Yes |
Touchscreen Type (Touchscreen Information) | Surface Acoustic Wave |
Touchscreen Type | Surface Acoustic Wave |
Touchscreen | Yes |
USB (Interfaces/Ports) | Yes |
USB | Yes |
Vertical Viewing Angle | 140 |
VESA Mount Compatible | Yes |
VESA Mount Standard | 75 x 75 |
VGA (Interfaces/Ports) | Yes |
VGA | Yes |
Viewable Screen Size | 15" |
Weight (Approximate) | 9.48 lb |
Width with Stand | 14.10" |
Download PDF File |
UPC | 834619001253 |
---|---|
Weight (lbs) | 10.0000 |
MPN | E829550 |
Prop65 Warning | WARNING This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65WARNINGs.ca.gov |
Brand | Elo |
