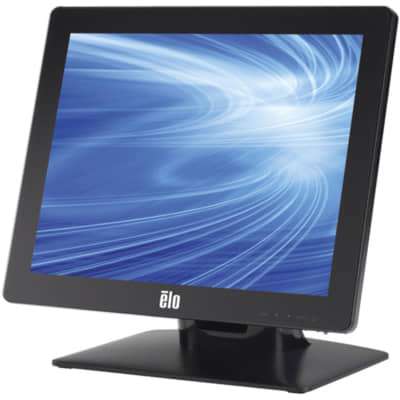

Elo 1717L 17" LCD Touchscreen Monitor, 5:4, 30 ms, 17" Class, Surface Acoustic Wave
Delivered in 2-4 business days
- The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- Enjoy crisp content and energetic hues with the 250 Nit brightness
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
The 1717L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, "built for touch" industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1717L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; iTouch pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.
| Adjustable Display Angle | Yes |
|---|---|
| Aspect Ratio | 5:4 |
| Backlight Technology | LED |
| Brand Name | Elo |
| Brightness (Video) | 250 Nit |
| Brightness | 250 Nit |
| Certifications & Standards | C-Tick; cUL; IC; CCC; CE; VCCI; KCC; e-Standby; CoC; BSMI; UL; FCC; CB; IMERC |
| Color Supported (Video) | 16.7 Million Colors |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio (Video) | 800:1 |
| Contrast Ratio | 800:1 |
| Depth with Stand | 7.52" |
| Environmental Certification | China RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | Security Lock |
| Height with Stand | 14.17" |
| Horizontal Frequency | 80 kHz |
| Horizontal Viewing Angle | 170 |
| Limited Warranty | 3 Year |
| Manufacturer Part Number | E179069 |
| Manufacturer | Elo Touch Solutions, Inc |
| Maximum Resolution (Video) | 1280 x 1024 |
| Maximum Resolution | 1280 x 1024 |
| Mount Type | Desk Mountable |
| Operating Power Consumption | 36 W |
| Package Contents | 1717L Rev A Multifunction 17-inch Desktop Touchmonitor; Power Cable; Touch/Video Cables |
| Platform Supported | PC |
| Product Color | Black |
| Product Model | 1717L |
| Product Name | 1717L Rev A Multifunction 17-inch Desktop Touchmonitor |
| Product Type | LCD Touchscreen Monitor |
| Response Time | 30 ms |
| Screen Mode | SXGA |
| Screen Size Class | 17" |
| Standard Refresh Rate (Video) | 75 Hz |
| Standard Refresh Rate | 75 Hz |
| Touchscreen (Touchscreen Information) | Yes |
| Touchscreen Type (Touchscreen Information) | Surface Acoustic Wave |
| Touchscreen Type | Surface Acoustic Wave |
| Touchscreen | Yes |
| USB (Interfaces/Ports) | Yes |
| USB | Yes |
| Vertical Viewing Angle | 160 |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| VGA (Interfaces/Ports) | Yes |
| VGA | Yes |
| Viewable Screen Size | 17" |
| Weight (Approximate) | 12.10 lb |
| Width with Stand | 15.43" |
| Download PDF File |
| Brand | Elo |
|---|---|
| Weight (lbs) | 17.5000 |
| UPC | 834619001352 |
| MPN | E179069 |
| Prop65 Warning | WARNING This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65WARNINGs.ca.gov |
