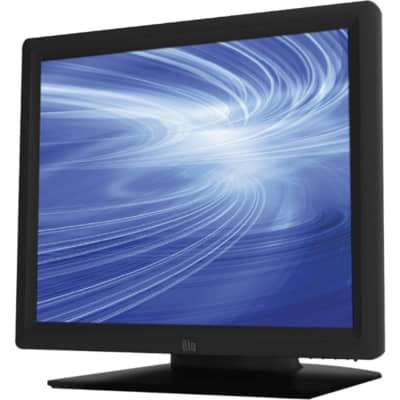

Elo 1717L 17" LCD Touchscreen Monitor, 5:4, 5 ms, 17" Class, IntelliTouch Surface Wave
SKU
INGMTG7799
by Elo
$735.22 /EACH
Delivered in 2-4 business days
In stock
- Experience an energetic display of colors, contrast and pictures with the sxga lcd touchscreen monitor
- The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
- The IntelliTouch Surface Wave touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- Enjoy crisp content and energetic hues with the 250 Nit brightness
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Category: POS Monitors
The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.
Aspect Ratio | 5:4 |
---|---|
Backlight Technology | LED |
Brand Name | Elo |
Brightness (Video) | 250 Nit |
Brightness | 250 Nit |
Certifications & Standards | Argentina S-mark; Australia C-Tick; Canada cUL; IC; China CCC; Europe CE; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI Mark; United States UL; FCC; International CB; IMERC |
Color Supported (Video) | 16.7 Million Colors |
Color Supported | 16.7 Million Colors |
Contrast Ratio (Video) | 800:1 |
Contrast Ratio | 800:1 |
Depth with Stand | 8.46" |
Environmental Certification | China RoHS |
Environmental Certification | RoHS |
Environmental Certification | WEEE |
Environmentally Friendly | Yes |
Features | Security Lock |
Height with Stand | 15.43" |
Horizontal Viewing Angle | 170 |
Input Voltage | 110 V AC |
Input Voltage | 12 V DC |
Input Voltage | 220 V AC |
Limited Warranty | 3 Year |
Manufacturer Part Number | E077464 |
Manufacturer | Elo Touch Solutions, Inc |
Maximum Resolution (Video) | 1280 x 1024 |
Maximum Resolution | 1280 x 1024 |
Mount Type | Desk Mountable |
Mount Type | Pole Mount |
Mount Type | Wall Mountable |
Off-Mode Power Consumption | 1.40 W |
Operating Power Consumption | 20 W |
Package Contents | 1717L Rev B 17-inch Multifunction Desktop; Power Cable; Detachable Touch and Video Cables |
Product Color | Black |
Product Model | 1717L |
Product Name | 1717L Rev B 17-inch Multifunction Desktop |
Product Type | LCD Touchscreen Monitor |
Response Time | 5 ms |
Screen Mode | SXGA |
Screen Size Class | 17" |
Screen Surface | Anti-glare |
Serial Port (Interfaces/Ports) | Yes |
Standard Refresh Rate (Video) | 75 Hz |
Standard Refresh Rate | 75 Hz |
Standby Power Consumption | 1.80 W |
Touchscreen (Touchscreen Information) | Yes |
Touchscreen Type (Touchscreen Information) | IntelliTouch Surface Wave |
Touchscreen Type | IntelliTouch Surface Wave |
Touchscreen | Yes |
USB (Interfaces/Ports) | Yes |
USB | Yes |
Vertical Viewing Angle | 160 |
VESA Mount Compatible | Yes |
VESA Mount Standard | 75 x 75 |
VGA (Interfaces/Ports) | Yes |
VGA | Yes |
Viewable Screen Size | 17" |
Weight with Stand (Approximate) | 11.90 lb |
Width with Stand | 14.21" |
Download PDF File |
UPC | 0834619001376 |
---|---|
Weight (lbs) | 16.4500 |
MPN | E077464 |
