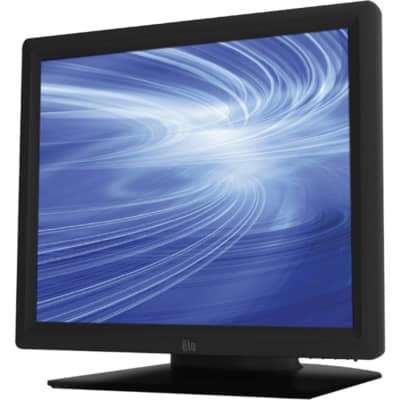

Elo 1717L 17" LCD Touchscreen Monitor, 5:4, 7.80 ms, 17" Class, 5-wire Resistive
Delivered in 2-4 business days
- The SXGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
- The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
- 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail- focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, loyalty systems, and shelf-level and countertop interactive digital signage are found. The 1717L is offered with AccuTouch five-wire resistive, IntelliTouch surface acoustic wave, or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch-and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications. The optional 3-track magnetic stripe reader (MSR) is programmable to either HID or Keyboard Emulation. It is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the- art LED backlights in the display panels.
Aspect Ratio | 5:4 |
---|---|
Backlight Technology | LED |
Brand Name | Elo |
Brightness (Video) | 250 Nit |
Brightness | 250 Nit |
Color Supported (Video) | 16.7 Million Colors |
Color Supported | 16.7 Million Colors |
Contrast Ratio (Video) | 800:1 |
Contrast Ratio | 800:1 |
Depth with Stand | 8.46" |
Environmental Certification | China RoHS |
Environmental Certification | RoHS |
Environmental Certification | WEEE |
Environmentally Friendly | Yes |
Features | Security Lock |
Height with Stand | 15.43" |
Height | 15.4" |
Horizontal Viewing Angle | 170 |
Input Voltage | 120 V AC |
Input Voltage | 230 V AC |
Limited Warranty | 3 Year |
Manufacturer Part Number | E649473 |
Manufacturer | Elo Touch Solutions, Inc |
Maximum Resolution (Video) | 1280 x 1024 |
Maximum Resolution | 1280 x 1024 |
Mount Type | Desk Mountable |
Mount Type | Pole Mount |
Mount Type | Wall Mountable |
Off-Mode Power Consumption | 1.40 W |
Operating Power Consumption | 20 W |
Package Contents | 1717L Rev B 17-inch Multifunction Desktop; Power Cable; Detachable Touch and Video Cables |
Platform Supported | PC |
Product Color | Black |
Product Model | 1717L |
Product Name | 1717L Rev B 17-inch Multifunction Desktop |
Product Type | LCD Touchscreen Monitor |
Response Time | 7.80 ms |
Screen Mode | SXGA |
Screen Size Class | 17" |
Screen Surface | Anti-glare |
Serial Port (Interfaces/Ports) | Yes |
Standard Refresh Rate (Video) | 75 Hz |
Standard Refresh Rate | 75 Hz |
Standby Power Consumption | 1.80 W |
Touchscreen (Touchscreen Information) | Yes |
Touchscreen Type (Touchscreen Information) | 5-wire Resistive |
Touchscreen Type | 5-wire Resistive |
Touchscreen | Yes |
USB (Interfaces/Ports) | Yes |
USB | Yes |
Vertical Viewing Angle | 160 |
VESA Mount Compatible | Yes |
VESA Mount Standard | 75 x 75 |
VGA (Interfaces/Ports) | Yes |
VGA | Yes |
Viewable Screen Size | 17" |
Weight (Approximate) | 11.90 lb |
Weight with Stand (Approximate) | 11.90 lb |
Width with Stand | 14.21" |
Download PDF File |
UPC | 834619001291 |
---|---|
Weight (lbs) | 18.6500 |
MPN | E649473 |
Prop65 Warning | WARNING This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65WARNINGs.ca.gov |
Brand | Elo |
