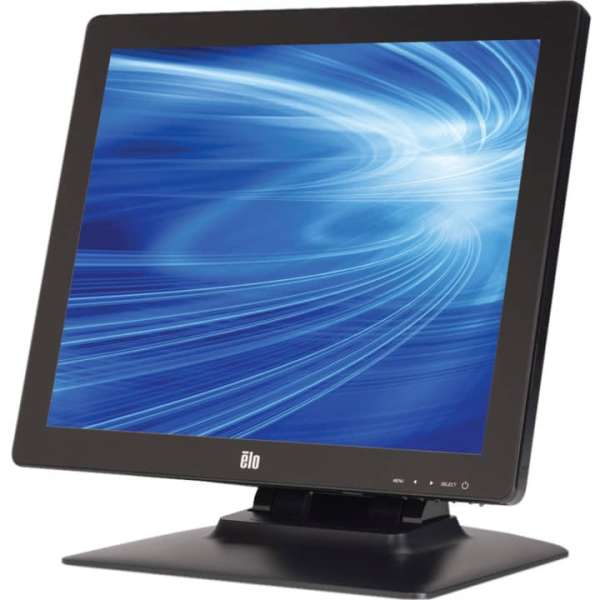

Elo 1723L 17" LCD Touchscreen Monitor, 5:4, 30 ms, 17" Class, IntelliTouch Pro Projected CapacitiveMulti-touch Screen
Delivered in 2-4 business days
- The SXGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications.
- The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels.
- The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture.
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio.
- The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures.
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs .
The Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket. The edge to edge flat glass style of the 1723L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box. Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images. The 1723L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.
Aspect Ratio | 5:4 |
---|---|
Backlight Technology | LED |
Brand Name | Elo |
Brightness (Video) | 250 Nit |
Brightness | 250 Nit |
Color Supported (Video) | 16.7 Million Colors |
Color Supported | 16.7 Million Colors |
Contrast Ratio (Video) | 800:1 |
Contrast Ratio | 800:1 |
Depth with Stand | 14.20" |
DVI (Interfaces/Ports) | Yes |
DVI | Yes |
Environmental Certification | China RoHS |
Environmental Certification | RoHS |
Environmental Certification | WEEE |
Environmentally Friendly | Yes |
Height with Stand | 8.24" |
Limited Warranty | 3 Year |
Manufacturer Part Number | E683457 |
Manufacturer | Elo Touch Solutions, Inc |
Maximum Resolution (Video) | 1280 x 1024 |
Maximum Resolution | 1280 x 1024 |
Mount Type | Wall Mountable |
Multi-touch Screen (Touchscreen Information) | Yes |
Multi-touch Screen | Yes |
Operating Power Consumption | 22 W |
Package Contents | 1723L Multifunction 17-inch Desktop Touchmonitor; Touch/Video/Accessory Cables |
Product Color | Black |
Product Model | 1723L |
Product Name | 1723L Multifunction 17-inch Desktop Touchmonitor |
Product Type | LCD Touchscreen Monitor |
Response Time | 30 ms |
Screen Mode | SXGA |
Screen Size Class | 17" |
Speakers (Audio) | Yes |
Speakers | Yes |
Touchscreen Type (Touchscreen Information) | IntelliTouch Pro Projected Capacitive |
Touchscreen Type | IntelliTouch Pro Projected Capacitive |
USB (Interfaces/Ports) | Yes |
USB | Yes |
VESA Mount Compatible | Yes |
VGA (Interfaces/Ports) | Yes |
VGA | Yes |
Viewable Screen Size | 17" |
Weight (Approximate) | 7.86 lb |
Weight with Stand (Approximate) | 25.35 lb |
Width with Stand | 15.42" |
Download PDF File |
UPC | 0834619007354 |
---|---|
Weight (lbs) | 17.6500 |
MPN | E683457 |
Prop65 Warning | WARNING This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65WARNINGs.ca.gov |
Brand | Elo |
