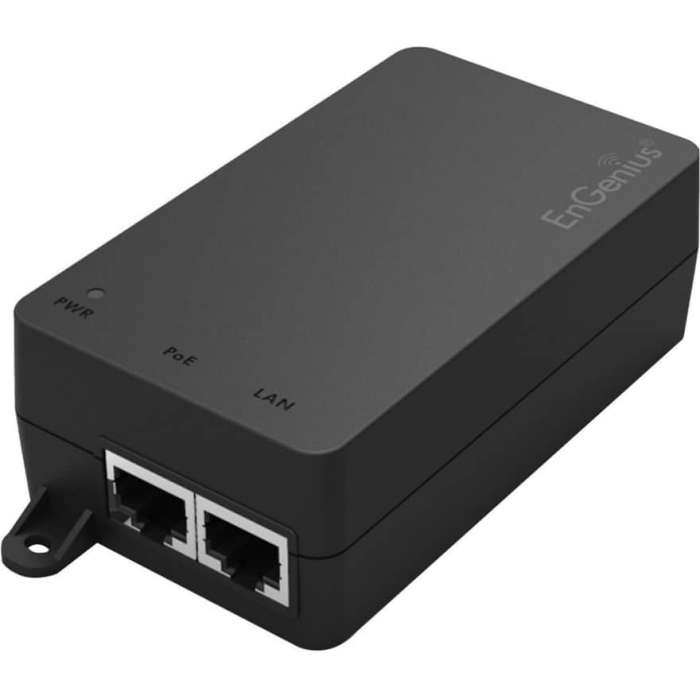

Engenius Tech EnGenius 802.3at/af Compatible Gigabit Single Port Poe Adapter, 120 V AC, 230 V AC Input, 1 x Gigabit Ethernet Input Port(s), 1 x Gigabit Ethernet Output Port(s), 30 W
Delivered in 2-4 business days
EnGenius PoE Adapter is easily to power and to network over Ethernet for increasing scalability and reducing installation time and cost.EPA series is a single-port Power over Ethernet (PoE) adapter for use with gigabit system. The ideal solution could assist installers to solve the limitation in designing networks is the availability of power source. The EnGenius PoE adapter allows delivery of both data and power to an 802.3at/af - compatible Access Point or device over a single Ethernet cable, allowing deployment of them exactly when users needed to provide the best wireless coverage and at much lower installation cost.Outdoor Networking Facility and Low Port Density InstallationsThe EPA5006GAT PoE adapter is fully compliance with 802.3at/af defection mechanism, with disconnect, short -circuit and overload protection to assure the securable and reliable connection for 802.3at/af devices. By sending maximum 30W output, Ethernet terminals which need more power such as wireless LAN high power device, IP media center, and web camera are powered remotely.
| Brand Name | EnGenius |
|---|---|
| Certifications & Standards | IEEE 802.3at/IEEE 802.3af; IEC 60950-1:2005 + A1; UL60950-1; EN55022:2010; EN55024:2010 FCC Part15 Class B; AS/NZS60950-1 |
| Country of Origin | Taiwan |
| Depth | 3.9" |
| Form Factor | External |
| Height | 1.3" |
| Input Ports (Interfaces/Ports) | 1 x Gigabit Ethernet |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | EPA5006GAT |
| Manufacturer | EnGenius Technologies, Inc |
| Maximum Frequency | 63 Hz |
| Maximum Input Current | 800 mA |
| Maximum Output Power | 30 W |
| Minimum Frequency | 47 Hz |
| Mount Type | Wall Mountable |
| Output Ports (Interfaces/Ports) | 1 x Gigabit Ethernet |
| Output Ports | 1 x Gigabit Ethernet |
| Package Contents | 802.3at/af Compatible Gigabit Single Port Poe Adapter; Anchors; Screws |
| Product Model | EPA5006GAT |
| Product Name | 802.3at/af Compatible Gigabit Single Port Poe Adapter |
| Product Type | PoE Injector |
| Protection Type | Over Current |
| Protection Type | Over Voltage |
| Protection Type | Overload Protection |
| Protection Type | Short Circuit |
| Width | 2.3" |
| Brand | EnGenius Technologies |
|---|---|
| Weight (lbs) | 0.5500 |
| UPC | 655216007871 |
| MPN | EPA5006GAT |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
