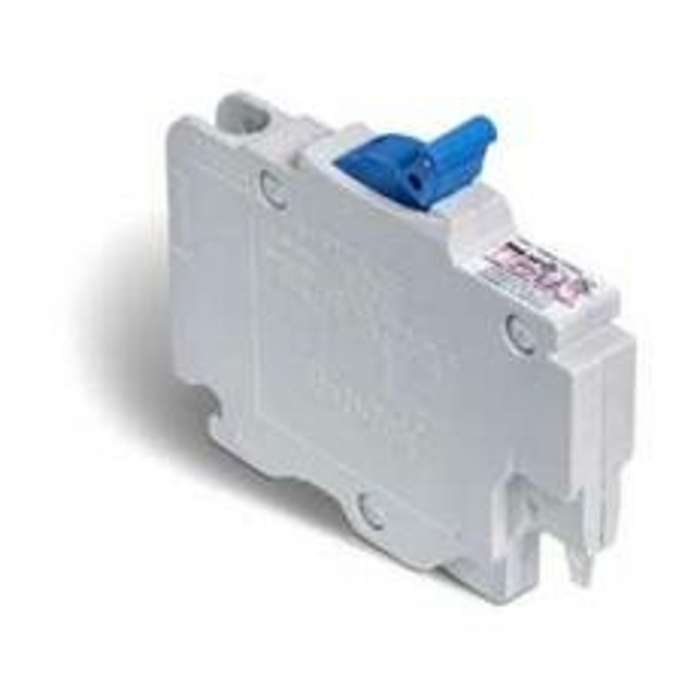

Square D Stab-lok NC015CP Circuit Breaker, Mini, Type NC, 15 A, 1 -Pole, 120 V, Plug Mounting, White
SKU
ORG1186436
by SQUARE D
$42.77 /EACH
Delivered in 2-4 business days
In stock
- Provides overload and short circuit protection
- Color-coded handle identification is quick and easy with separate colors representing different ampere ratings
- Type NC with Robertson/slot screws
- Thermal magnetic trip protection
- Exclusive line side stab connection
- Trip-free operation
- Arc-resistant case
- For overload and short circuit protection
Stab-lok breakers are fully interchangeable with all past breakers and deliver the same proven quality. The unique Stab-lok breaker design of only a 1/2 in wide per pole, allows for the reduction of the size and weight of the loadcenter. These breakers are CSA approved to work only in federal pioneer branded residential panel.
| Actuator Type | Magnetic Thermal |
|---|---|
| Color | White |
| Current Rating | 15A |
| Dimensions | 0.5 in W x 3 in D x 3.4 in H |
| Interrupt Rating | 10kA |
| Mounting Type | Plug |
| Number of Poles | 1 |
| Number Of Spaces | 2 |
| Operating Temperature | 40deg C |
| Terminal Type | Lug |
| Type | Mini Type NC |
| Voltage Rating | 120V |
| Wire Size | 14 to 6AWG |
| Brand | SQUARE D |
|---|---|
| Weight (lbs) | 0.2000 |
| UPC | 047569176821 |
| MPN | NC015CP |
