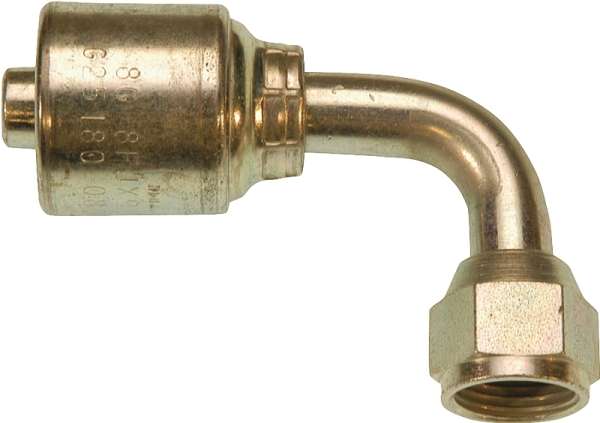

GATES MegaCrimp G25179-0808 Hose Coupling, 3/4-16, Crimp x JIC, 90 deg Angle, Steel, Zinc
SKU
ORG2857217
by Gates
$39.10 /EACH
Delivered in 2-4 business days
In stock
Only 5 left
- Surpassed one million impulse cycles during design testing
- MegaCrimp couplings set a new standard for hydraulic couplings
- The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torqueing by a strong-armed worker
- Crimps on all wire braid hose
- Fully integrated with gates MegaSys hose
- TuffCoat plating
- Large holding shoulder evenly distributes stress forces
- Higher resistance against cracking, even when inadvertently over-torqued
- Less sensitive to material and processing flaws
Category: Hose Couplings
MegaCrimp couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp coupling that makes it perform so well, the "C" insert. This "C" insert allows usage with different constructions and wall thicknesses. In addition, the "C" insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and 2-wire hoses. MegaCrimp couplings are a fully-qualified EN-performance coupling.
| Angle | 90deg |
|---|---|
| Connection Type | Crimp x JIC |
| Cut-Off Length | 1.71in |
| Diameter | 1/2 x 3/4in |
| Finish | Zinc |
| Hex Size | 24mm |
| Length | 3.19in |
| Material | Steel |
| Nominal Size | 3/4-16 |
| Suitable for | CM2T G1 G1H G2 G2H G2L G2XH G3H G4H GMV GTH GTHX J2AT M-XP M2T M3K M3KH M4 Series Hose |
| Wall Thickness | 1.14in |
| Weight (lbs) | 0.3200 |
|---|---|
| Brand | Gates |
| UPC | 072053323276 |
| MPN | G251790808 |
