Geist Vertiv Geist Rack PDU, Combination Outlet, C13/C19, 30A, 120/208V WYE (VP43302)
SKU
INGM7RA919
by Vertiv
$1,546.74 /EACH
Delivered in 2-4 business days
Out of stock
- PDU is reliable for power protection and management solutions.
- Before critical input source become overloaded always be warned with monitored PDUs.
- Combination C13/C19 receptacle type to ensure maximum dependability and optimal performance.
- Three Phase phase PDU provides dependable power output with maximum efficiency.
- NEMA L21-30P plug/connector type for reliable, productive connectivity and optimal power output.
- 230 V AC input voltage for optimal performance with maximum usability.
- 240 V AC output voltage for maximum dependability and added productivity .
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Power Distribution Units

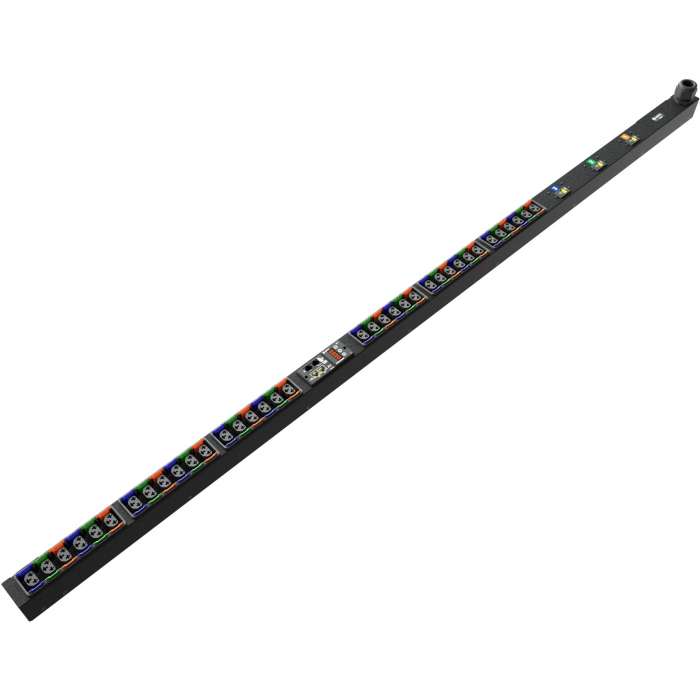

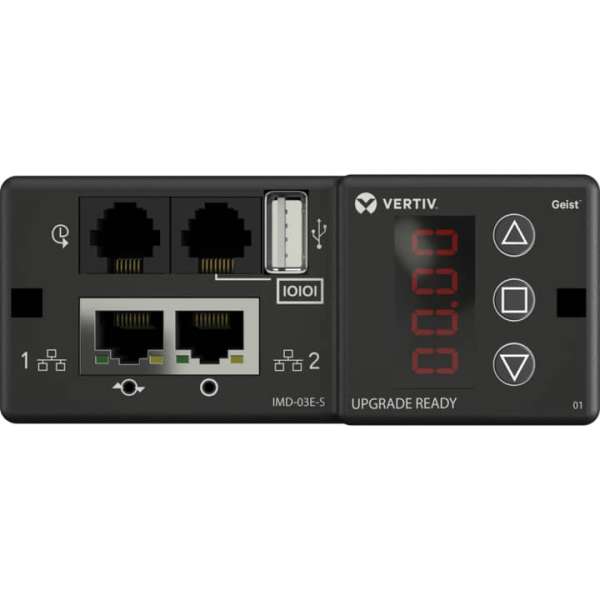

The Vertiv Geist NI30686 rPDU is a versatile rack power distribution unit featuring 36 Combination C13/C19 Outlets. The NI30686 is a 30A, 120/208V three phase WYE upgradeable rack PDU with a L21-30P plug and 10ft power cord. The NI30686 provides unit level remote power monitoring and environmental monitoring capabilities with the addition of optional environmental sensors. Remotely monitor and manage the rPDU through any web browser or via serial communication. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord and are also P-Lock compatible. The hot-swappable IMD provides peace of mind that as business needs change the technology can easily be updated.
| Brand Name | VERTIV |
|---|---|
| Certifications & Standards | UL & c-UL Listed 60950; FCC Part 15 Class A Conformance |
| Cord Length | 10 ft |
| Country of Origin | United States |
| Depth | 2" |
| Energy Star | No |
| Environmental Certification | China RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 70" |
| Input Current | 30 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Length | 2" |
| Management | DHCP; HTTP; HTTPS; IPv4; IPv6; LDAP; NTP; RADIUS; RSTP; SSH; SMTP; SNMP (v1/v2c/v3); Syslog; TACACS+ |
| Manufacturer Part Number | VP43302 |
| Manufacturer | Vertiv |
| Modem (RJ-11) (Interfaces/Ports) | No |
| Modem (RJ-12) (Interfaces/Ports) | Yes |
| Mount Type | Cabinet-mountable |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Network (RJ-45) (Interfaces/Ports) | Yes |
| Number of Cord/Cable | 1 |
| Output Voltage Range | 100 V AC - 120 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 240 V AC |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Detail | 1 x NEMA L21-30P |
| Plug/Connector Type | NEMA L21-30P |
| Power Rating (Watt) | 8600 W |
| Product Color | Black |
| Product Family | N |
| Product Name | GU NI30686 PDU |
| Product Series | N |
| Product Type | PDU |
| Protection Type | Overcurrent Protection |
| Rack Height | 0U |
| Receptacle Detail | 36 x Combination C13/C19 |
| Receptacle Type | Combination C13/C19 |
| Remote Outlet Switching | No |
| Serial Port (Interfaces/Ports) | Yes |
| TAA Compliant | Yes |
| USB (Interfaces/Ports) | Yes |
| Weight (Approximate) | 17 lb |
| Width | 2" |
| Download PDF File |
| Brand | Vertiv |
|---|---|
| Weight (lbs) | 38.0000 |
| UPC | 767041031942 |
| MPN | VP43302 |
