Geist Vertiv Geist Rack PDU, Combination Outlet, C13 / C19, 60A, 208V Delta (VP46301)

SKU
INGM7RA920
by Vertiv
$2,061.78 /EACH
Out of stock

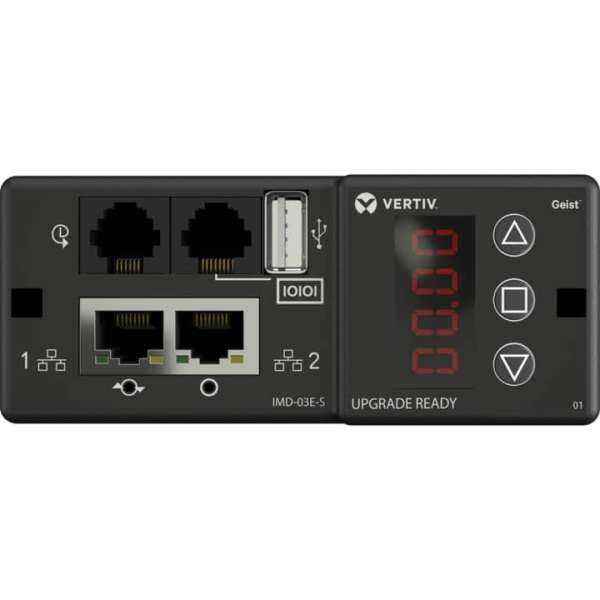

The Vertiv Geist NI30677 rPDU is a versatile rack power distribution unit featuring 30 Combination C13/C19 Outlets. The NI30677 is a 60A, 208V three phase DELTA upgradeable rack PDU with a 3P+E (IP44) splash proof plug. The NI30677 provides unit level remote power monitoring and environmental monitoring capabilities with the addition of optional environmental sensors. Remotely monitor and manage the rPDU through any web browser or via serial communication. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord and are also P-Lock compatible. The hot-swappable IMD provides peace of mind that as business needs change the technology can easily be updated.


Brand NameVERTIV
Certifications & StandardsUL & c-UL Listed 60950; FCC Part 15 Class A Conformance
Cord Length10 ft
Country of OriginUnited States
Depth3"
Energy StarNo
Environmental CertificationChina RoHS
Environmental CertificationRoHS
Environmentally FriendlyYes
Height70"
Input Current60 A
Input Voltage Range200 V AC - 240 V AC
Input Voltage208 V AC
Length3"
ManagementDHCP; HTTP; HTTPS; IPv4; IPv6; LDAP; NTP; RADIUS; RSTP; SSH; SMTP; SNMP (v1/v2c/v3); Syslog; TACACS+
Manufacturer Part NumberVP46301
ManufacturerVertiv
Modem (RJ-11) (Interfaces/Ports)No
Modem (RJ-12) (Interfaces/Ports)Yes
Mount TypeCabinet-mountable
Mount TypeRack-mountable
Mounting OrientationVertical
Network (RJ-45) (Interfaces/Ports)Yes
Number of Cord/Cable1
Output Voltage Range200 V AC - 240 V AC
Output Voltage240 V AC
PDU TypeMonitored
PhaseThree Phase
Plug/Connector Detail1 x 3P+E (IP44)
Plug/Connector Type3P+E (IP44)
Power Rating (Watt)17.20 kW
Product ColorBlack
Product FamilyN
Product NameGU NI30677 PDU
Product SeriesN
Product TypePDU
Protection TypeOvercurrent Protection
Rack Height0U
Receptacle Detail30 x Combination C13/C19
Receptacle TypeCombination C13/C19
Remote Outlet SwitchingNo
Serial Port (Interfaces/Ports)Yes
TAA CompliantYes
USB (Interfaces/Ports)Yes
Weight (Approximate)32 lb
Width2.1"
Download PDF File
BrandVertiv
Weight (lbs)10.000000
UPC767041031959
MPNVP46301
