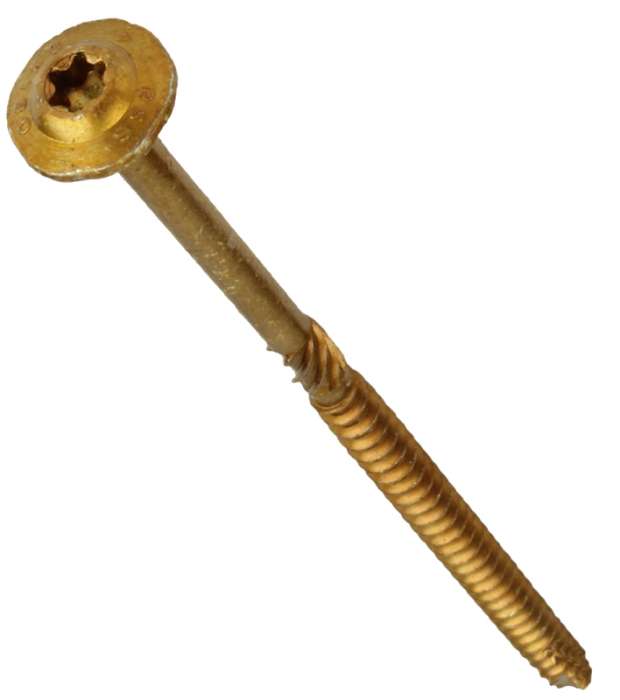

GRK Fasteners RSS 10223 Structural Screw, 5/16 in Thread, 3-1/2 in L, Washer Head, Star Drive, Steel, 500 BX

SKU
ORG2816304
$260.09 /PACKAGE

Delivered in 2-4 business days

Out of stock
  • Recessed star drive zero stripping, with six points of contact
  • CEE Thread enlarges hole to reduce splitting
  • W-Cut low torque, faster drive
  • Zip-Tip no pre-drilling, faster penetration
  • Washer head for immense holding power
  • Cutting pockets provide a clean hole and reduces splitting and bore with precision
  • Case hardened steel for high tensile, torque and shear strength
  • Climatek coating is AC257 code approved for use in treated lumber
  • For interior and exterior use in carrying beams, ledger boards, stair rails, deck posts, playground equipment and other professional applications

GRK's RSS screw is made of specially hardened steel to provide you with high tensile, torque and shear strength. The sharp threads and points bite instantly into the material (including hardwood), reducing the splitting effect due to smaller shanks. RSS screws that are 3-1/8 in and longer have CEE threads which enlarge the screw hole for the non-threaded portion of the fastener, allowing the wood to settle easily and increases the screw's drawing strength. The CEE thread also reduces the friction on the screw shank which can result in lowering the driving torque and the likelihood of splitting the wood. This is why the RSS screw is an efficient lag screw alternative. Our round head with built-in shield (washer type head) has no sharp edges like conventional lag screws. The added shoulder (nominal diameter) underneath the washer has the ability to center the RSS screw in pre-drilled hardware like hinges and connector plates.


Applicable MaterialsWood
Drive SizeT30
Drive TypeStar
Head TypeWasher
Length3-1/2
MaterialSteel
Package Quantity500BX
Shear Strength2948lb
Tensile Strength4247lb
Thread Length2-1/2in
Thread Size5/16in
Download PDF File
BrandGRK Fasteners
Weight (lbs)18.5000
UPC772691102232
MPN10223
