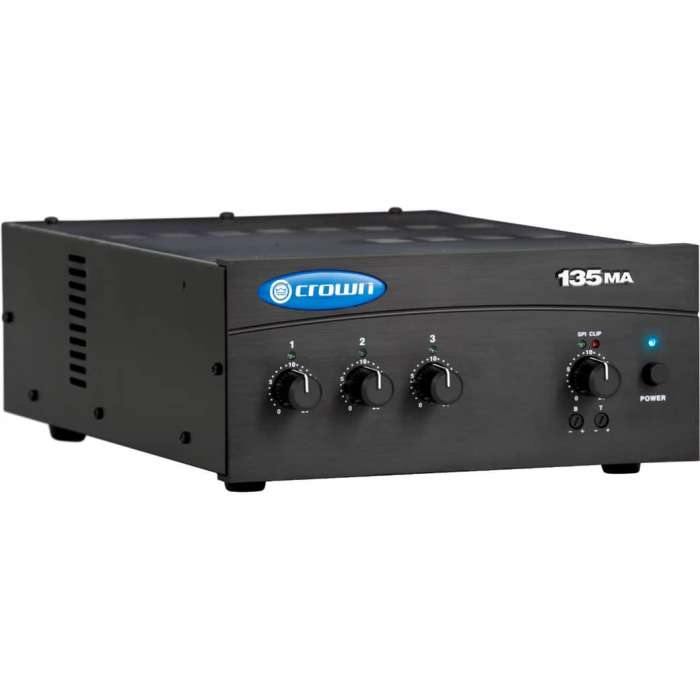

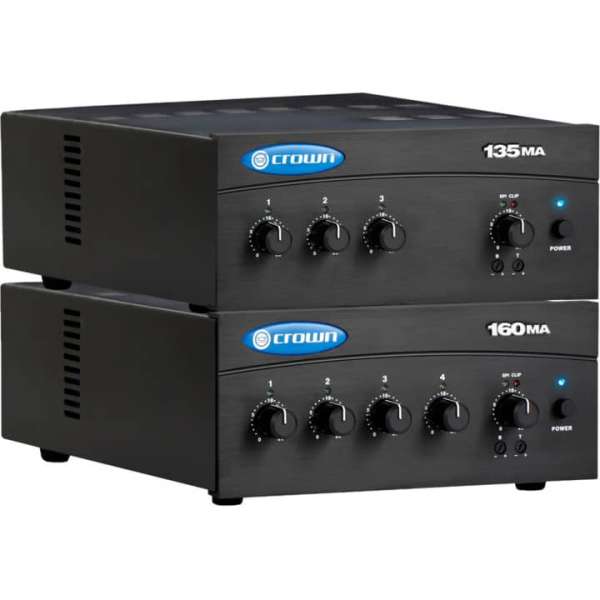

Crown's 135MA and 160MA are high value mixer-amplifiers for commercial audio. They provide 8-ohm and constant-voltage outputs (70V and 100V). Typical uses are paging, background music, and music-on-hold. The 135MA provides 3 inputs (each with a volume control) and a 35W amplifier output. The 160MA provides 4 inputs (each with a volume control) and a 60W amplifier output. Other features include priority muting, voice activated muting, phantom power, and bass and treble controls.

Audio Channels (Audio)	3
Audio Channels	3
Brand Name	Crown
Country of Origin	China
Depth	13.9"
Height	4.1"
Impedance	8 Ohm
Input Voltage	120 V AC
Input Voltage	15 V DC
Input Voltage	230 V AC
Manufacturer Part Number	G135MA
Manufacturer	Harman International Industries, Inc
Maximum Frequency Response	20 kHz
Minimum Frequency Response	50 Hz
Number of Analog Audio Inputs (Interfaces/Ports)	4
Number of Analog Audio Inputs	4
Operating Power Consumption	95 W
Package Contents	Three Input, 35W Mixer-Amplifier; Power cord; Non-touch cover for output connectors; Phoenix-type connectors
Product Color	Black
Product Model	135MA
Product Name	Three Input, 35W Mixer-Amplifier
Product Type	Amplifier
RMS Output Power (Audio)	105 W
RMS Output Power	105 W
Weight (Approximate)	8.16 lb
Width	9.5"
Download PDF File	Manufacturer Brochure User Manual

More Information

Brand	Crown
Weight (lbs)	10.600000
UPC	871015002705
MPN	G135MA

Reviews

Harman Crown 135MA Amplifier, 105 W RMS, 3 Channel, Black, 50 Hz to 20 kHz
