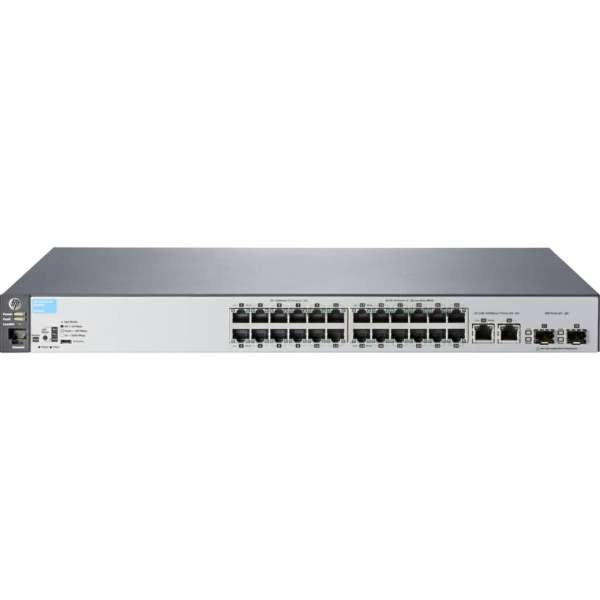

The HP 2530 Switches Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Lifetime Warranty 2.0. The HP 2530 Switch Series is easy to use and deploy, and can be manages with the HP Intelligent Management Center (IMC) for a single view of your entire network.

Brand Name	HPE
Bypass (Interfaces/Ports)	No
Certifications & Standards	IEEE Standards:; 802.1D; 802.1p; 802.1Q; 802.1s; 802.1w; 802.3; 802.3ab; 802.3ad; 802.3az; 802.3xSafety:; UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1Emissions:; FCC Class A; EN 55022; CISPR-22 Class A; VCCI Class AImmunity:; EN 61000-3-3; IEC 61000-3-3; EN 61000-3-2; IEC 61000-3-2; IEC 61000-4-11; IEC 61000-4-8; IEC 61000-4-6; IEC 61000-4-5; IEC 61000-4-4; IEC 61000-4-3; IEC 61000-4-2; EN 55024; CISPR 24
Compatible Rack Unit	1U
Country of Origin	China
Depth	9.7"
Ethernet Technology	Fast Ethernet
Ethernet Technology	Gigabit Ethernet
Expansion Slot Type (I/O Expansions)	SFP
Expansion Slot Type	SFP
Flash Memory	128 MB
Form Factor	Desktop
Form Factor	Rack-mountable
Form Factor	Wall Mountable
Height	1.8"
Layer Supported	2
LRE Port (Interfaces/Ports)	No
Manageable	Yes
Management Port (Interfaces/Ports)	Yes
Management	Web-based Management; Intelligent Management Center; CLI; Telnet; SNMP v1, v2c, v3; MIB II; RMON 1, 2, 3, 9; DHCP; QoS; VLAN; sFlow
Manufacturer Part Number	J9782A#ABA
Manufacturer	Hewlett Packard Enterprise
Media Type Supported	Twisted Pair
Memory Technology	DDR3 SDRAM
Network Technology	10/100/1000Base-T
Network Technology	10/100Base-TX
Number of Network (RJ-45) Ports (Interfaces/Ports)	24
Number of SFP Slots (I/O Expansions)	2
Number of Total Expansion Slots (I/O Expansions)	2
Number of Total Expansion Slots	2
Package Contents	2530-24 Switch; Mounting Hardware
PoE (RJ-45) Port	No
Port/Expansion Slot Details (Interfaces/Ports)	2 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details (Interfaces/Ports)	2 x Gigabit Ethernet Uplink
Port/Expansion Slot Details (Interfaces/Ports)	24 x Fast Ethernet Network
Power Source	Power Supply
Product Family	2530
Product Model	2530-24
Product Name	2530-24 Switch
Product Series	2530
Product Type	Ethernet Switch
Shared SFP Slot (I/O Expansions)	No
Standard Memory	256 MB
Token Ring Port (Interfaces/Ports)	No
Total Number of Network Ports (Interfaces/Ports)	26
Total Number of Network Ports	26
Uplink Port (Interfaces/Ports)	Yes
USB (Interfaces/Ports)	Yes
Weight (Approximate)	5.70 lb
Width	17.4"
Download PDF File	Manufacturer Brochure User Manual

More Information

Brand	HP Enterprise
Weight (lbs)	9.320000
UPC	886112459727
MPN	J9782A#ABA
