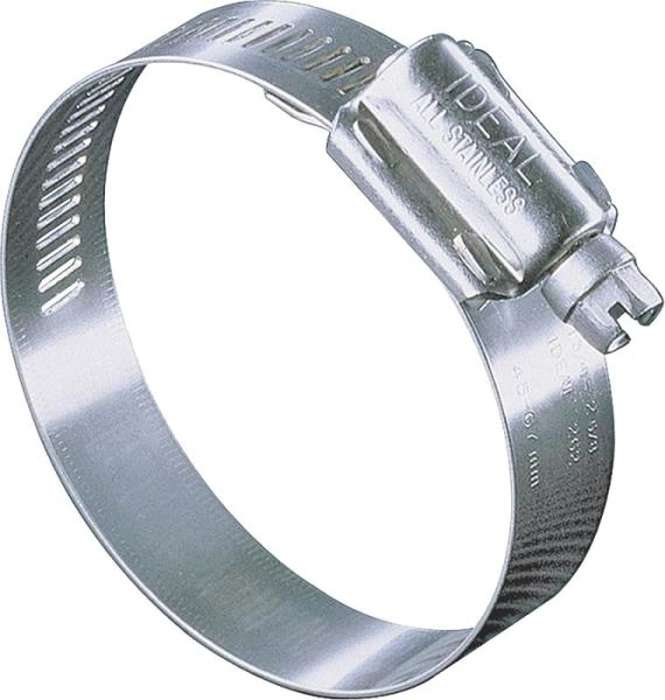

IDEAL-TRIDON Hy-Gear 68-0 Series 6872053 Interlocked Worm Gear Hose Clamp, Stainless Steel

SKU
ORG3072519
$35.70 /10EACH

Delivered in 2-4 business days

In stock
  • One piece housing and interlocked construction
  • Mechanical design locks the one piece housing directly to the band using the full strength of the material to provide maximum anti-shear protection
  • No spot welds to rupture under stress or corrosion
  • One piece housing will not come apart under high loading

Features a full-size 9/16 in band and housing width that allows 12-1/2% more sealing area over conventional 1/2 in bands. One-piece housing and interlocked construction. Mechanical design locks the one piece housing directly to the band using the full strength of the material to provide maximum anti-shear protection. No spot welds to rupture under stress or corrosion. One-piece housing will not come apart under high loading. 5/16 in hex-head screw. Especially suited to industrial applications.


Bolt MaterialStainless Steel
Grade200
Height7.0in
Hex Bolt Size5/16in
MaterialStainless Steel
Nominal Opening Size3 to 5in
Trade Size72
Width9/16in
BrandIdeal-Tridon
Weight (lbs)0.1100
UPC078575168722
MPN6872053
