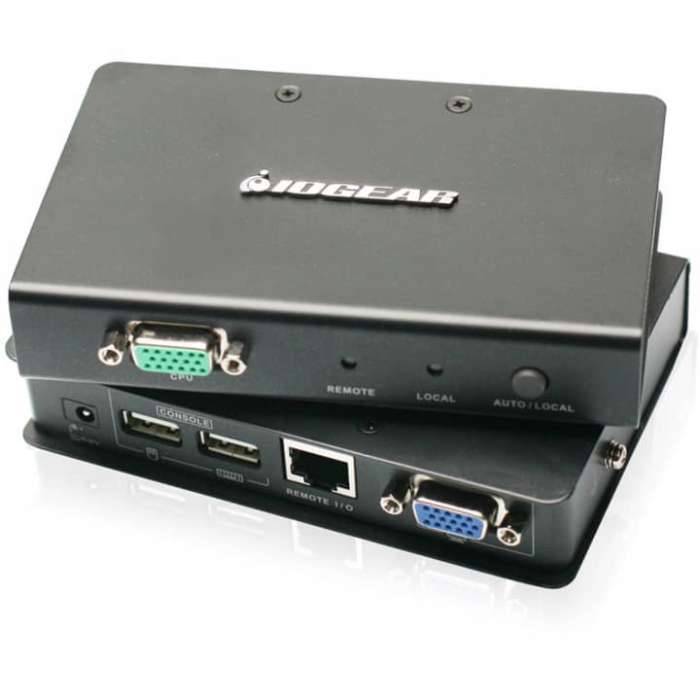

IOGEAR GCE500U KVM Cosole/Extender, 1 Computer(s), 1 Local User(s), 1 Remote User(s), 500 ft Range
SKU
INGMCM6350
by IOGEAR
$251.25 /EACH
Delivered in 2-4 business days
In stock
Only 7 left
- Extend your KVM console (VGA monitor, USB keyboard & mouse) connection up to 500 ft. via CAT5e cables
- Auto Signal Compensation (ASC) helps make installation easy, with no need to configure DIP switches
- Built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility
- Dual Console Operation - Control your system from either the local or remote console
- Built-in 8KV ESD protection and 2KV surge protection
- Maximum video resolution up to:1920 x 1200 @ 60Hz (100 ft. - 30m),1600 x 1200 @ 60HZ (330 ft. - 100m),1280 x 1024 @ 60Hz (500 ft. - 150m)
- USB over-current detection and prevention
- Easy To Operate - Push button selection between local and remote console
- Rack Mountable (rack mount kit included)
- Plug-N-Play - No need for any software driver installation
Category: Computers & Hardware
The Iogear's GCE500U KVM Cosole/Extender allows access to a PC with USB or USB KVM switch from a remote USB VGA console (VGA monitor, USB keyboard, and USB mouse) via Cat5e/6 cable up to 500 feet away. This unit is perfect for moving the console away from the computer or the KVM switch. Your console can be moved out of the server room to a location that may be more comfortable and quieter.
| Brand Name | IOGEAR |
|---|---|
| Connectivity Technology | Wired |
| Country of Origin | China |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Rack-mountable |
| Graphic Mode (Video) | WUXGA |
| Input Voltage | 5.3 V DC |
| KVM Technology | Analog |
| Manufacturer Part Number | GCE500U |
| Manufacturer | IOGEAR, Inc |
| Maximum Operating Distance | 500 ft |
| Maximum Video Resolution (Video) | 1920 x 1200 |
| Maximum Video Resolution | 1920 x 1200 |
| Network (RJ-45) (Interfaces/Ports) | Yes |
| Network (RJ-45) | Yes |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Network (RJ-45) Ports (Interfaces/Ports) | 2 |
| Number of Remote Users Supported | 1 |
| Number of USB Ports (Interfaces/Ports) | 4 |
| Number of VGA Ports (Interfaces/Ports) | 2 |
| Package Contents | GCE500U KVM Cosole/Extender; 2 x Rack Mount Kit; 1 x USB KVM Cable; 2 x Grounding Wire; 2 x Power Adapter; 1 x Installation Guide; 1 x Warranty Card |
| Packaged Quantity | 1 |
| Product Model | GCE500U |
| Product Name | GCE500U KVM Cosole/Extender |
| Product Type | KVM Console/Extender |
| Proprietary Interface (Interfaces/Ports) | Yes |
| Proprietary Interface | Yes |
| USB (Interfaces/Ports) | Yes |
| USB | Yes |
| VGA (Interfaces/Ports) | Yes |
| VGA | Yes |
| Brand | IOGEAR |
|---|---|
| Weight (lbs) | 4.0000 |
| UPC | 881317506016 |
| MPN | GCE500U |
| Prop65 Warning | WARNING: This product may expose you to chemicals including styrene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov |
