Johnson Hardware 153080PF Pocket Door Frame Kit

SKU
ORG5329594
$181.75 /EACH

Delivered in 2-4 business days

Out of stock
  • Nylon encapsulated sealed ball bearing wheel
  • 12 to 14 ga steel components with zinc trivalent plated
  • 6063T6 extruded aluminum I-Beam track with mill-aluminum finish
  • Spruce, pine or fir frame header
  • Split stud construction is galvanized steel wrapped spruce, pine or fir
  • For interior commercial or residential applications

The 1500HD Series pocket door frame is designed to carry heavy solid core doors weighing up to 200 lb Ball bearing hanger wheels provide feather-touch door operation making the 1500HD one of the smoothest rolling pocket door installations available. The 1500 is designed to be quickly installed into prepared 2 x 4 timber frame stud walls however, the 1500 can also be adapted for use in various wall thicknesses and with various wall materials and structures. The 1500 frame kit is packaged for easy transport and fast installation for either single or converging 2 door applications and all frame sizes can be cut down to accommodate custom size doors.


Door Thickness1-3/4in

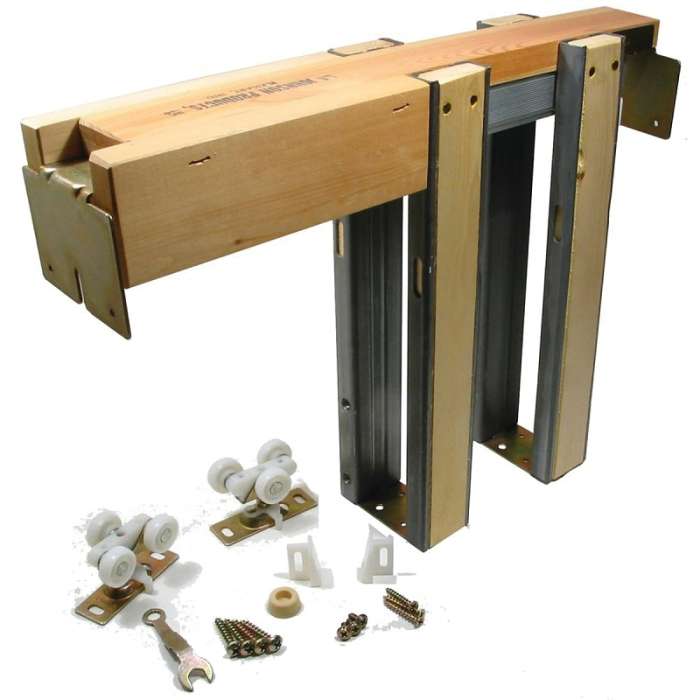

IncludesHeader Assembly (2) Ball Bearing Door Hangers (1) Door Bumper (1) Pocket Door Guide (1) Adjustment Wrench (2) 1-3/8 in Door Floor Brackets (2) 1-3/4 in Door Floor Brackets (4) 1-3/4 in Door Split Stud Shims (4) Steel Wrapped Split Studs and Hardware Mounting Screws
Maximum Door Width36in
TypeCommercial-Grade
BrandJOHNSON HARDWARE
Weight (lbs)35.0000
UPC086073153089
MPN153080HD
