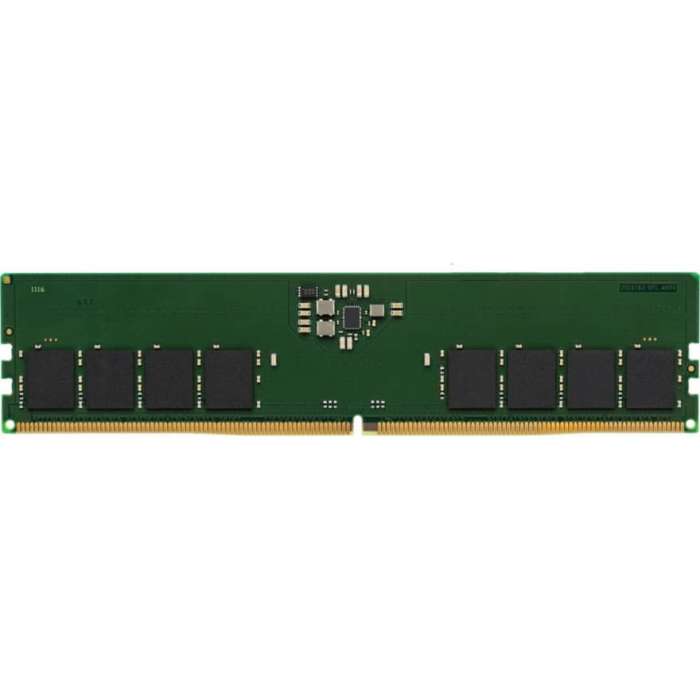

Kingston ValueRAM 16GB DDR5 SDRAM Memory Module, For Motherboard, 16 GB, DDR5-4800/PC5-38400 DDR5 SDRAM, 4800 MHz Single-rank Memory

This document describes ValueRAM's KVR48U40BS8-16 is a 2G x 64-bit (16GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
