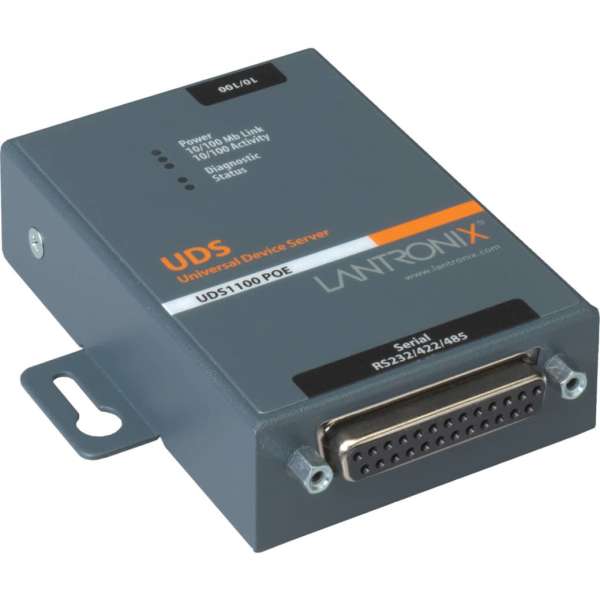

Lantronix One Port Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server with Power Over Ethernet (PoE), Convert from RS-232; RS-485 to Ethernet using Serial over IP technology; Power Over Ethernet (PoE 802.3 AF); UL864 Compliant; Wall Mountable; Rail

SKU
INGMM88501
$243.90 /EACH
In stock

The UDS1100 Device Server with PoE enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet.With the UDS1100, virtually any piece of equipment can be added to an Ethernet network in a matter of minutes! This single-port device server is a quick, simple and inexpensive way to bring the advantages of remote management to equipment not currently connected to a network.


Additional InformationSoftware-selectable RS232, RS422 or RS485
Brand NameLantronix
Certifications & StandardsIEEE 802.3; IEEE 802.3u; IEEE 802.3af; UL; CSA; FCC; CE; TUV; C-Tick; VCCI
Depth0.9"
Ethernet TechnologyFast Ethernet
Form FactorWall Mountable
Height3.5"
Input Voltage30 V DC
Manufacturer Part NumberUD11000P0-01
ManufacturerLantronix, Inc
Memory TechnologySRAM
Network (RJ-45) (Interfaces/Ports)Yes
Number of Network (RJ-45) Ports (Interfaces/Ports)1
Number of Network (RJ-45) Ports1
Number of Serial Ports (Interfaces/Ports)1
Number of Serial Ports1
Power Consumption1.50 W
Processor ManufacturerLantronix
Processor Speed48 MHz
Product FamilyUDS
Product ModelUDS1100
Product NameUDS1100 Device Server with PoE
Product SeriesUDS
Product TypeDevice Server
Serial Port (Interfaces/Ports)Yes
Serial PortYes
Standard Memory256 KB
Weight (Approximate)7.05 oz
Width2.5"
Download PDF File
BrandLantronix
Weight (lbs)1.200000
UPC783384232358
MPNUD11000P0-01
Prop65 WarningWARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov
