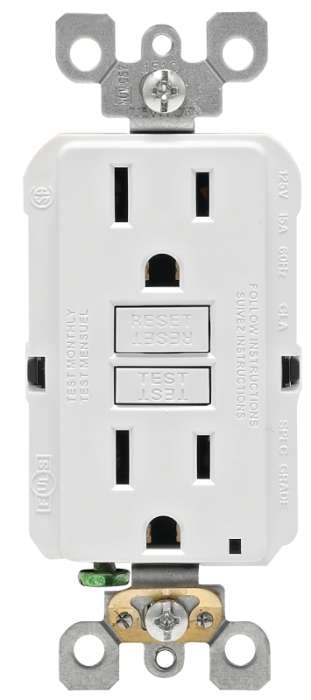

Leviton M02-GFNT1-03W GFCI Receptacle/Outlet, 125 V, 15 A, NEMA: NEMA 5-15R, White
SKU
ORG2856771
by Leviton
$55.73 /PACKAGE
Delivered in 2-4 business days
In stock
- Provides continuous ground fault protection that detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 sec
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
The SmartlockPro self-test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton's patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro self-test GFCI is the smart choice in ground fault circuit interrupter protection.
| Color | White |
|---|---|
| Current Rating | 15A |
| Dimensions | 4.21 in L x 1.69 in W x 1.32 in D |
| Material | Polycarbonate |
| Nema Rating | NEMA 5-15R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -35 to 66deg C |
| Short Circuit Current Rating | 10kA |
| Suitable for | Decora Devices and Wallplates |
| Type | Standard Duplex |
| Voltage Rating | 125V |
| Wire Size | 14 to 10AWG |
| Download PDF File |
| UPC | 078477714119 |
|---|---|
| Weight (lbs) | 0.8600 |
| MPN | M02-GFNT1-03W |
| Brand | Leviton |
