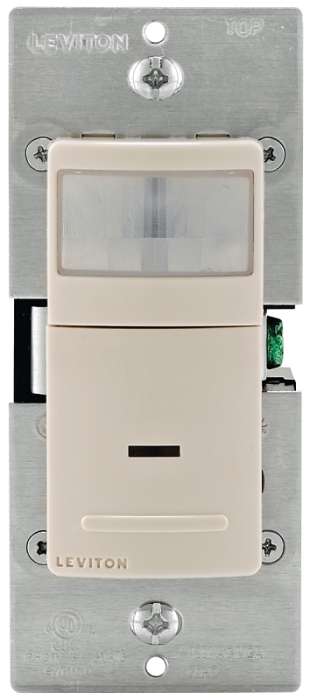

Leviton R08-IPS02-1LT Universal Motion Detector, CFL, Halogen, Incandescent, LED Lamp, 30 s to 30 min, 150 W
Delivered in 2-4 business days
- Universal light control switches incandescent, CFL, LED, electronic low voltage and magnetic low voltage loads using relay technology
- Auto-On/auto-Off operation for seamless energy management
- Low-profile design eliminates an obtrusive "scanning device" look
- Elegant styling compliments any interior and coordinates with Leviton's popular line of Decora® wiring devices
- Convenient push-button provides manual Off light switching at any time
- Segmented lens provides optimum sensitivity and performance
- Four optional manual adjustments for delayed-OFF time settings maximize energy savings
- LED indicator light flashes when sensor detects motion to verify detection is active
- Fits in standard wall box and replaces single-pole wall switch
- Neutral wire not required, suitable for retrofit and new construction applications
Leviton's IPV02/IPS02 universal vacancy and occupancy sensors combine state-of-the-art technology with new aesthetics to provide optimal management of lighting and motor loads and a choice of either Manual-On (vacancy sensor) or Automatic-On (occupancy sensor) switching. These energy-saving sensors are engineered to control current LED, CFL, Electronic and Magnetic Low Voltage and incandescent loads and ensure that lights/motors will turn On manually (vacancy) or automatically (occupancy) and turn OFF automatically when motion is no longer detected within the covered range. All models have screw terminals for easy installation and do not require a neutral wire for connection. The IPV02/IPS02 is single pole, relay-based and designed to replace a single pole switch for loads such as exhaust fans.
| Color | Light Almond |
|---|---|
| Current Rating | 2.5A |
| Dimensions | 4.06 in L x 1.75 in W x 1.35 in H |
| Frequency Rating | 60Hz |
| Lamp Type | CFL Halogen Incandescent LED |
| Mounting Type | Wallbox |
| Number of Poles | 1 |
| Sensing Angle | 180deg |
| Sensing Range | 900sq-ft |
| Sensor Type | Motion |
| Temperature Rating | 0 to 40deg C |
| Timer Range | 30 s to 30 min |
| Type | Universal |
| Voltage Rating | 120V |
| Wattage Rating | 150W |
| Download PDF File |
| UPC | 078477572573 |
|---|---|
| Weight (lbs) | 0.3700 |
| MPN | DOS02-R08-1LT |
| Brand | Leviton |
