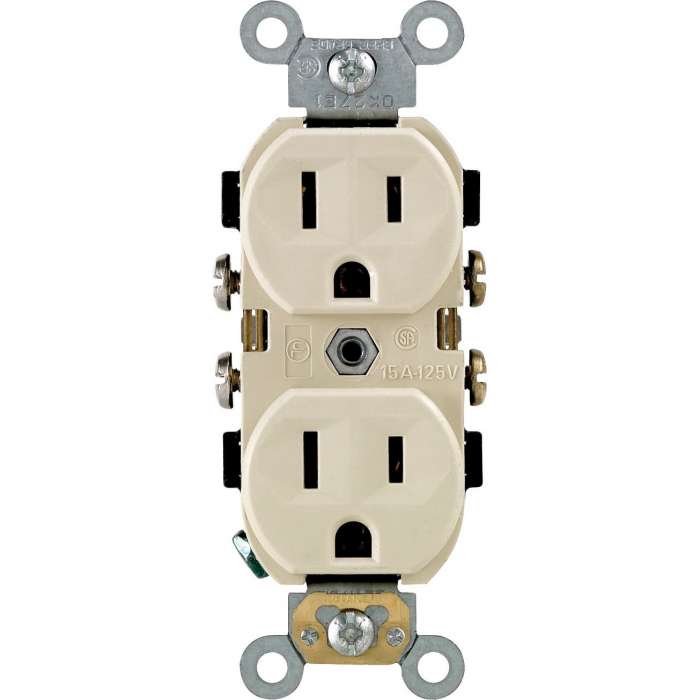

Leviton S01-0BR15-0IS Duplex Receptacle, 15 A, 2-Pole, 5-15R, Ivory

Name: Leviton S01-0BR15-0IS Duplex Receptacle, 15 A, 2-Pole, 5-15R, Ivory
Price: 17.47 USD
Availability: OutOfStock

SKU

ORG7018476

$17.47 /EACH

Out of stock

Body Material	Polypropylene
Brand Name	Leviton
Clamp Nuts	Brass
Color	Ivory
Commercial or Residential	Commercial
Current Limiting	Full Rated Current
Depth	1.08
Dielectric Voltage	Withstands 2000V per UL498
Face Material	Polypropylene
Ground Clips	Brass
Grounded	Yes
Grounding Screw	Steel 8-32
Height	4.06
Indoor or Outdoor	Indoor
Line Contacts	Brass Triple-Wipe .031 Thick
Material	Polypropylene
Maximum Amperage	15
Mounting Type	In-Wall
Nema Type	5-15R
Number in Package	1
Number of Poles	2
Number of Wire	3 Wire
Operating Temperature	-40C to 60C
Outlet Configuration	Duplex
Packaging Type	Boxed
Product Type	Outlet
Screw Terminal Torque	14-18 in-lbs
Strap Material	Zinc-Plated Steel
Temperature Rise	Max 30C after 100 cycles OL at 150 percent rated current
Terminal Accom.	14-10 AWG
Terminal ID	Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws	Brass 8-32
Termination	Back or Side Wire
UL/CSA Listed	Both At Rated
Voltage	1/2 HP
Volts	125
Width	1.53
Download PDF File	Safety Data Sheet
