(142814 ratings)

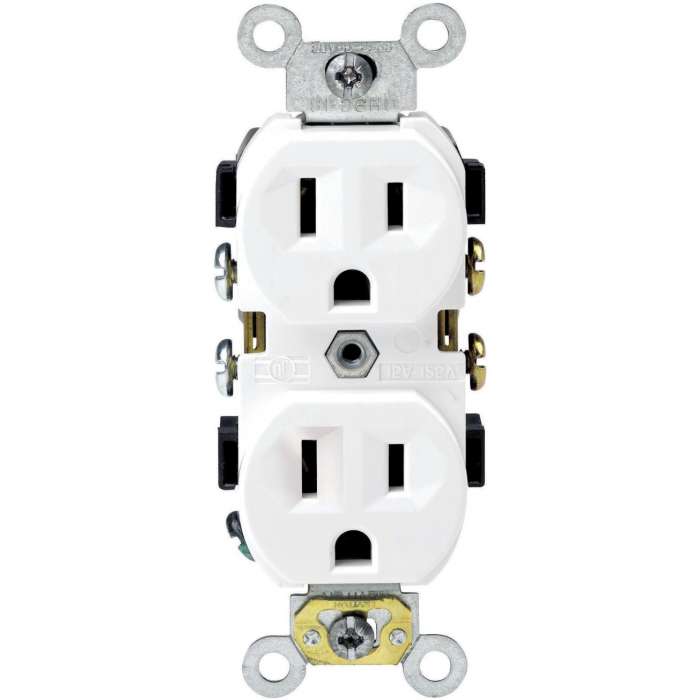

Leviton S02-0BR15-0WS Duplex Receptacle, 15 A, 2-Pole, 5-15R, White
SKU
ORG7018484
by Leviton
$18.25 /EACH
Delivered in 2-4 business days
Out of stock
Leviton Duplex Receptacle, 125 V, 15 A, 60 Hz, 2 -Pole, 3 -Wire, Back, Side Wiring, 14 to 10 AWG, 5-15R, -40 to 60 deg C Operating, Wall Mounting, Nylon, White, 4.06 in L x 1.56 in W x 1.09 in D Dimensions
Categories: Tools & Garage, Electrical, Rough Electrical, Switches & Receptacles, Duplex Receptacles
| Body Material | Polypropylene |
|---|---|
| Brand Name | Leviton |
| Color | White |
| Commercial or Residential | Commercial |
| Current Limiting | Full Rated Current |
| Depth | 1.08 |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Face Material | Polypropylene |
| Ground Clips | Brass |
| Grounded | Yes |
| Grounding Screw | Steel 8-32 |
| Height | 4.06 |
| Indoor or Outdoor | Indoor |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Material | Polypropylene |
| Maximum Amperage | 15 |
| Mounting Type | In-Wall |
| Nema Type | 5-15R |
| Number in Package | 1 |
| Number of Poles | 2 |
| Number of Wire | 3 Wire |
| Operating Temperature | -40C to 60C |
| Outlet Configuration | Duplex |
| Packaging Type | Boxed |
| Product Type | Outlet |
| Screw Terminal Torque | 14-18 in-lbs |
| Strap Material | Zinc-Plated Steel |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated |
| Terminal Accom. | 14-10 AWG |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Terminal Screws | Brass 8-32 |
| Termination | Back or Side Wire |
| UL/CSA Listed | Both At Rated |
| Voltage | 1/2 HP |
| Volts | 125 |
| Width | 1.53 |
| Download PDF File |
| Brand | Leviton |
|---|---|
| Weight (lbs) | 0.2200 |
| UPC | 078477943700 |
| MPN | S02-0BR15-0WS |
